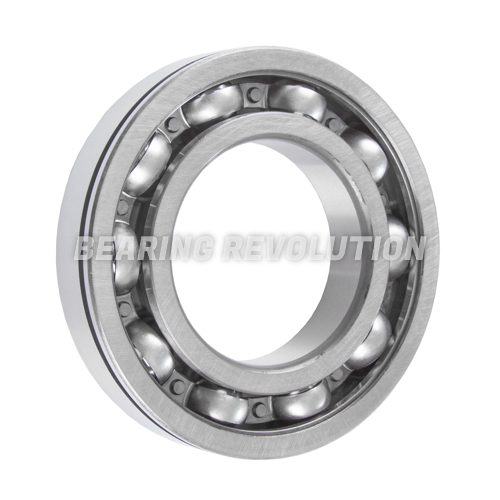

6305 N C3
DEEP GROOVE BALL BEARING WITH A 25MM BORE - PREMIUM RANGE
Medium series single row deep groove ball bearing with C3 clearance, open type and a snap ring groove from our Premium range. 25mm OD, 62mm OD and 17mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 6305 N C3 | |
| Reference | 6305 N C3 |
| Brand | Premium |
| Inside Diameter | 25mm |
| Outside Diameter | 62mm |
| Width | 17mm |
| Clearance | C3 |
| Seals / Shields | open type |
| Snap Ring | Snap Ring Groove |
| Weight (KG) | 0.245 |
Schematic for 6305 N C3 | |
| B | 17mm |
| d | 25mm |
| D | 62mm |
