6308 Z N
DEEP GROOVE BALL BEARING WITH A 40MM BORE - PREMIUM RANGE
Medium series single row deep groove ball bearing with one shield and a snap ring groove from our Premium range. 40mm OD, 90mm OD and 23mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£57.00 (£68.40 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 6308 Z N | |
| Reference | 6308 Z N |
| Brand | Premium |
| Inside Diameter | 40mm |
| Outside Diameter | 90mm |
| Width | 23mm |
| Clearance | standard |
| Seals / Shields | one shield |
| Snap Ring | Snap Ring Groove |
| Weight (KG) | 0.66 |

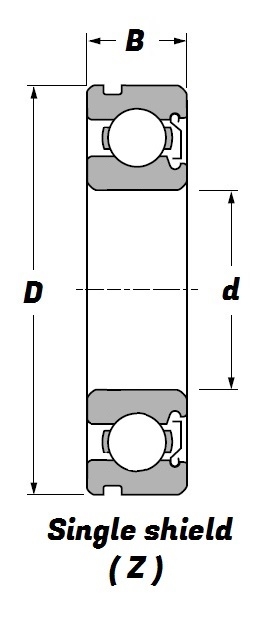

Schematic for 6308 Z N | |
| B | 23mm |
| d | 40mm |
| D | 90mm |
