6309 Z C2

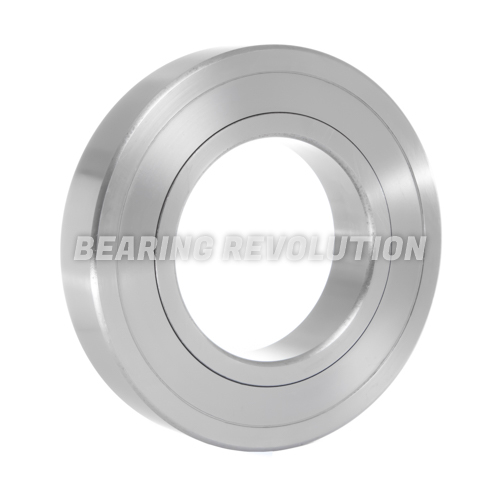

DEEP GROOVE BALL BEARING WITH A 45MM BORE - PREMIUM RANGE
Medium series single row deep groove ball bearing with C2 clearance and one shield from our Premium range. 45mm OD, 100mm OD and 25mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 6309 Z C2 | |
| Reference | 6309 Z C2 |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 25mm |
| Clearance | C2 |
| Seals / Shields | one shield |
| Weight (KG) | 0.833 |

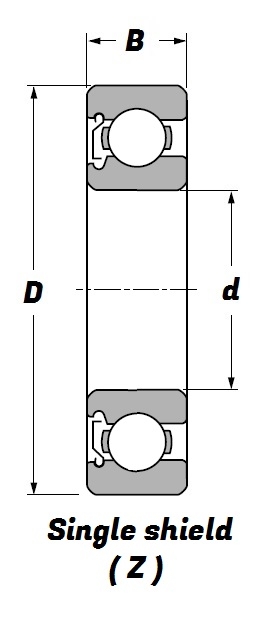

Schematic for 6309 Z C2 | |
| B | 25mm |
| d | 45mm |
| D | 100mm |
