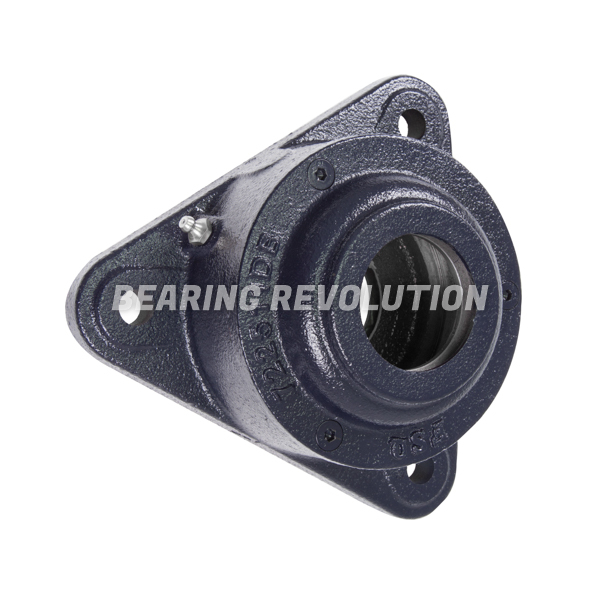

722508 DB, TRIANGULAR FLANGED HOUSING FOR THROUGH SHAFT - PREMIUM RANGE
7225.. series 3-bolt flanged housing with through shaft suitable for self aligning ball bearings and spherical roller bearings and adaptor sleeve mounting (both would need to be ordered separately) from our Premium range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£211.38 (£253.66 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 722508 DB, Triangular Flanged Housing for through shaft - Premium Range | |
| Reference | 722508 DB |
| Brand | Premium |
| Inside Diameter | 40mm |

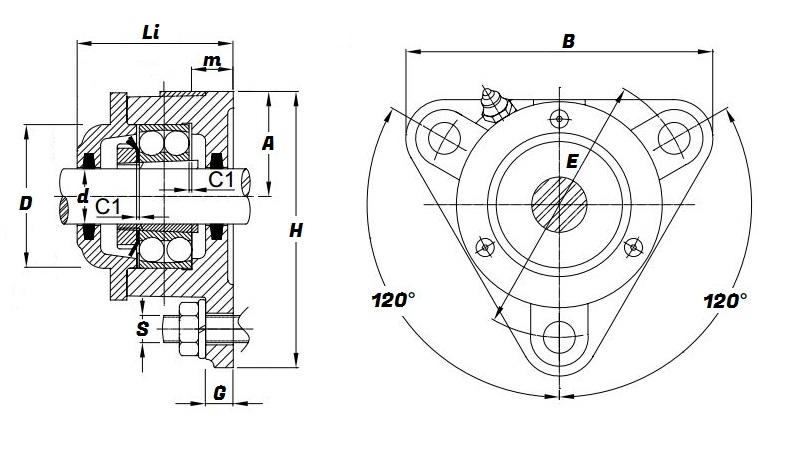

Schematic for 722508 DB, Triangular Flanged Housing for through shaft - Premium Range | |
| A | 54mm |
| B | 160mm |
| D | 80mm |
| E | 140mm |
| G | 12mm |
| H | 143mm |
| Li | 65.5mm |
| m | 17mm |
| S | M12 |
