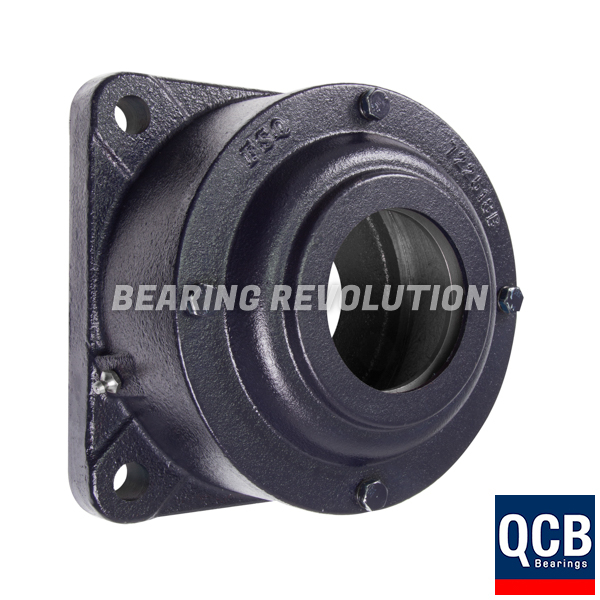

722516 B, SQUARE FLANGED HOUSING FOR THROUGH SHAFT - SELECT RANGE
7225.. series square flanged housing with through shaft suitable for self aligning ball bearings and spherical roller bearings and adaptor sleeve mounting (both would need to be ordered separately) from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£354.01 (£424.81 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 722516 B, Square Flanged Housing for through shaft - Select Range | |
| Reference | 722516 B |
| Brand | Select |
| Inside Diameter | 80mm |

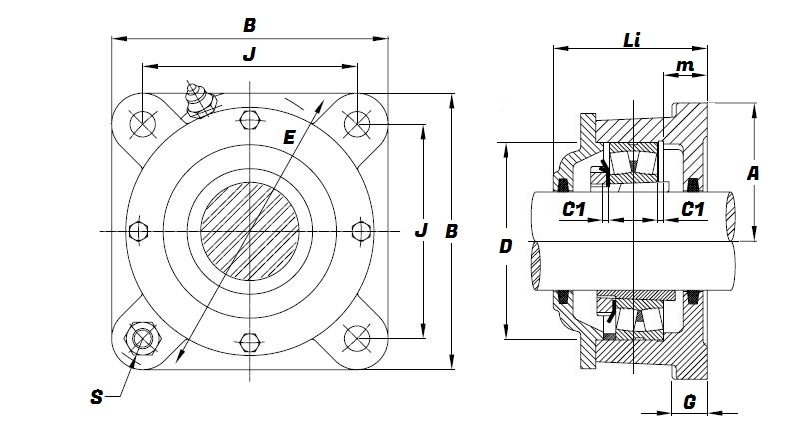

Schematic for 722516 B, Square Flanged Housing for through shaft - Select Range | |
| A | 98mm |
| B | 196mm |
| D | 140mm |
| E | 215mm |
| G | 25mm |
| J | 152mm |
| La | 110mm |
| m | 31mm |
| S | M16 |
