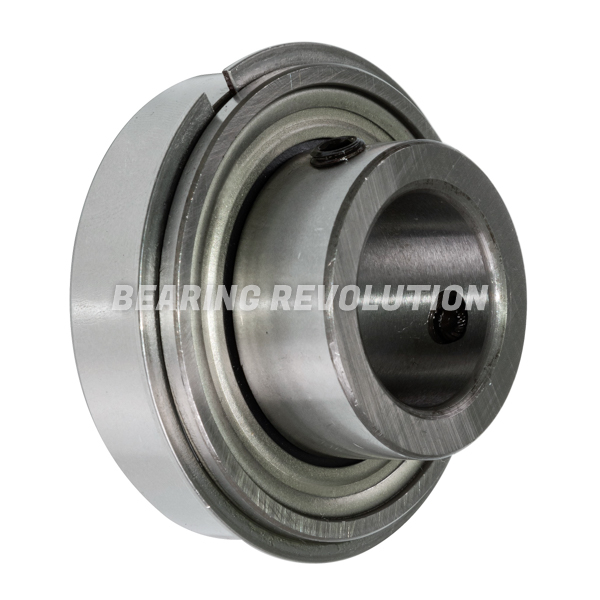

7612 DLG
DEEP GROOVE BALL BEARING WITH A .3/4 INCH BORE - PREMIUM RANGE
7600 series heavy duty precision ground radial bearing with an extended inner ring, two seals and a fitted snap ring from our Premium Range - ID .3/4", OD 1.3/4" with two widths of 1.092" and .5/8".
Also known as WE 512
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 7612 DLG | |
| Reference | 7612 DLG |
| Brand | Premium |
| Inside Diameter | .3/4" |
| Outside Diameter | 1.3/4" |
| Width | 1.092" and .5/8" |
| Seals / Shields | two seals |
| Snap Ring | snap ring |
| Weight (KG) | 0.141 |

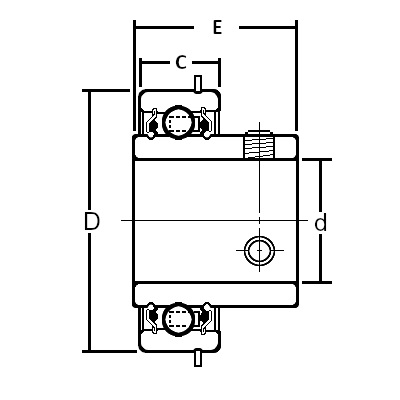

Schematic for 7612 DLG | |
| C | .5/8" |
| d | .3/4" |
| D | 1.3/4" |
| E | 1.092" |
