8504

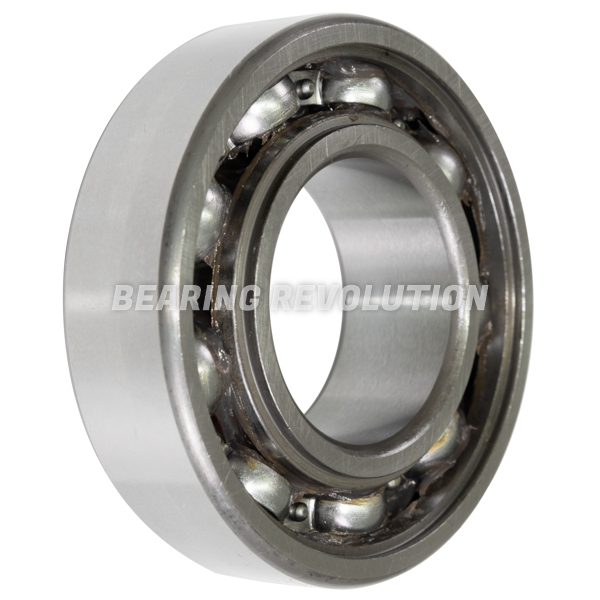

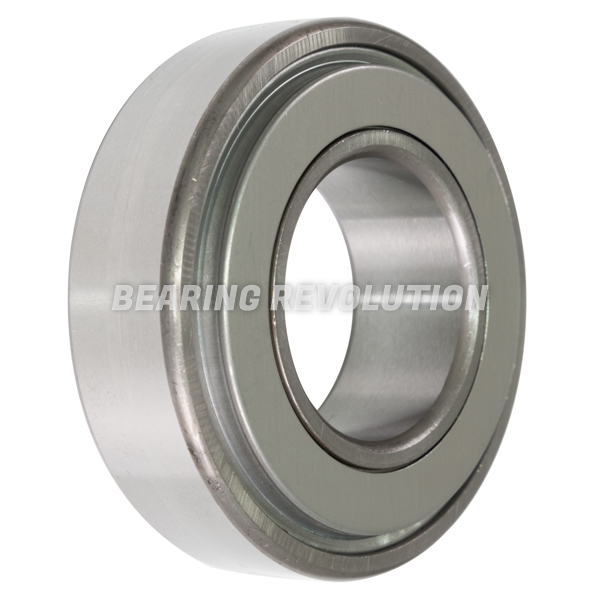

FELT SEALED BALL BEARING WITH A 20MM BORE AND STEEL CAGE - PREMIUM RANGE
Single sealed 8000 series deep groove ball bearing from our Premium Range - ID 20mm, OD 47mm and width .625".
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 8504 | |
| Reference | 8504 |
| Brand | Premium |
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Width | .625" |

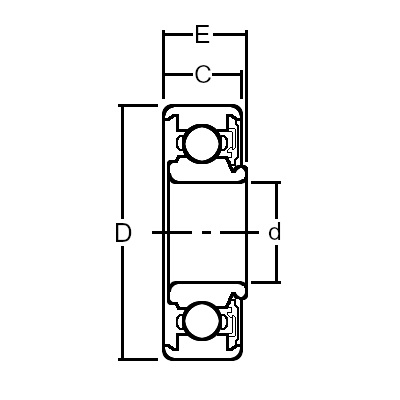

Schematic for 8504 | |
| C | 0.551 |
| d | 20mm |
| D | 47mm |
| E | 0.625 |
