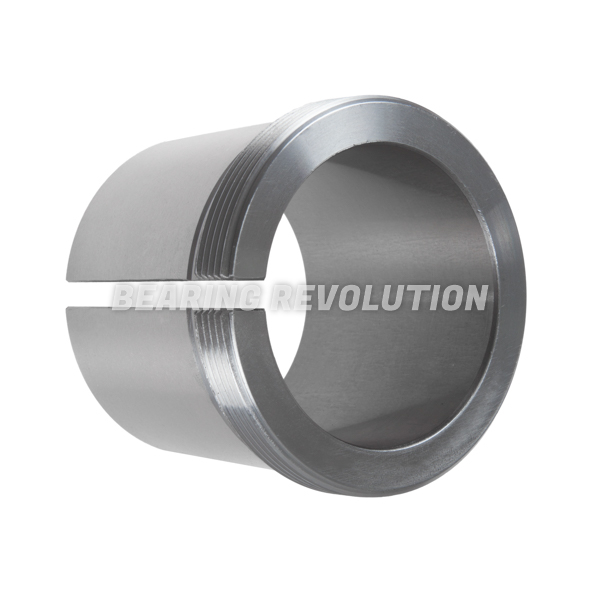

Please note photos are for illustration purposes only
How To Measure A Bearing

AHX 2322 100, WITHDRAWAL SLEEVE - BUDGET

BR Stock No. B-AHX 2322 100 | Brand: Budget | Mfr. Part No. AHX 2322 100

Withdrawal sleeve with a 100mm bore suited to fit into a 110mm tapered shaft from our Budget range. Applicable locking devices for this size would be KM 24 or hydraulic nut HMV 24 E but must be ordered separately.

Also known as AHX 2322

Our budget range is manufactured to International standards and represents great value for money.

  • UnitsPer unit
  • 1 - 4£117.15 (£140.58 inc VAT)
  • 5 - 9£111.29 (£133.55 inc VAT)
  • 10 +£105.44 (£126.53 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£117.15 ex VAT
Trade Account
AHX 2322 100, Withdrawal Sleeve - Budget Schematic

Specifications for AHX 2322 100, Withdrawal Sleeve - Budget

ReferenceAHX 2322 100
BrandBudget
Inside Diameter100mm
Outside Diameter110mm
Width98mm
Weight (KG)1.35

Schematic for AHX 2322 100, Withdrawal Sleeve - Budget

B198mm
B2102mm
d110mm
d1105mm
KG1.35
