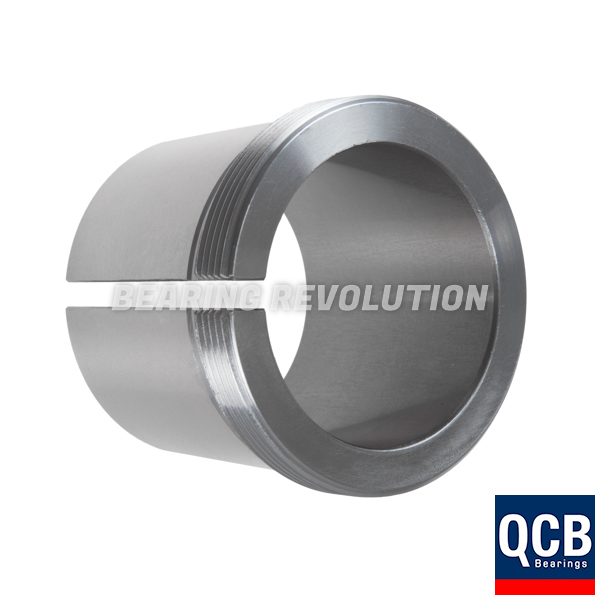

AHX 3130 140, WITHDRAWAL SLEEVE - SELECT RANGE
Withdrawal sleeve with a 140mm bore suited to fit into a 150mm tapered shaft from our Select range. Applicable locking devices for this size would be KM 32 or hydraulic nut HMV 32 E but must be ordered separately.
Also known as AHX 3130
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£303.59 (£364.31 inc VAT)
- 5 - 9£288.42 (£346.10 inc VAT)
- 10 +£273.23 (£327.88 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AHX 3130 140, Withdrawal Sleeve - Select Range | |
| Reference | AHX 3130 140 |
| Brand | Select |
| Inside Diameter | 140mm |
| Outside Diameter | 150mm |
| Width | 96mm |
| Weight (KG) | 1.79 |
Schematic for AHX 3130 140, Withdrawal Sleeve - Select Range | |
| B1 | 96mm |
| B2 | 101mm |
| d | 150mm |
| d1 | 145mm |
| KG | 1.79 |
