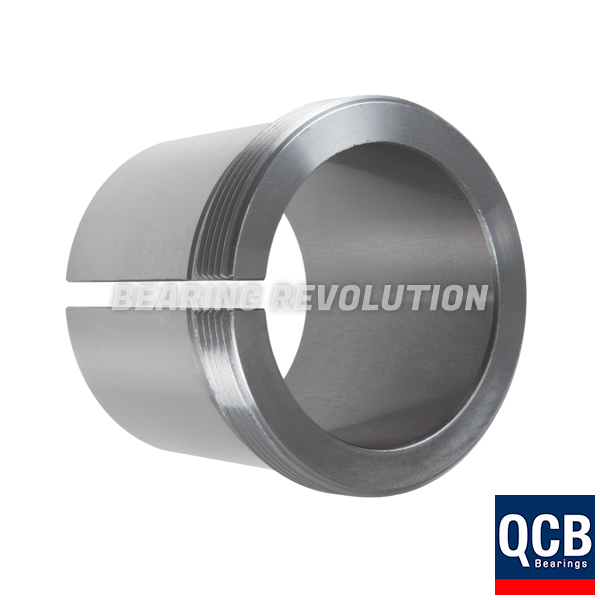

AHX 320 90, WITHDRAWAL SLEEVE - SELECT RANGE
Withdrawal sleeve with a 90mm bore suited to fit into a 100mm tapered shaft from our Select range. Applicable locking devices for this size would be KM 22 or hydraulic nut HMV 22 E but must be ordered separately.
Also known as AHX 320
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£84.37 (£101.24 inc VAT)
- 5 - 9£80.15 (£96.18 inc VAT)
- 10 +£75.93 (£91.12 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AHX 320 90, Withdrawal Sleeve - Select Range | |
| Reference | AHX 320 90 |
| Brand | Select |
| Inside Diameter | 90mm |
| Outside Diameter | 100mm |
| Width | 59mm |
| Weight (KG) | 0.582 |
Schematic for AHX 320 90, Withdrawal Sleeve - Select Range | |
| B1 | 59mm |
| B2 | 63mm |
| d | 100mm |
| d1 | 95mm |
| KG | 0.582 |
