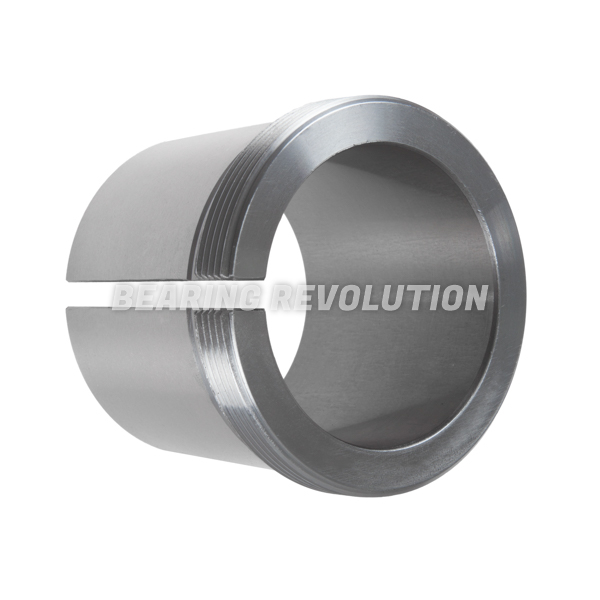

AHX 3224 100, WITHDRAWAL SLEEVE - BUDGET
Withdrawal sleeve with a 100mm bore suited to fit into a 120mm tapered shaft from our Budget range. Applicable locking devices for this size would be KM 26 or hydraulic nut HMV 26 E but must be ordered separately.
Also known as AHX 3224
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£121.08 (£145.30 inc VAT)
- 5 - 9£115.03 (£138.04 inc VAT)
- 10 +£108.97 (£130.76 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AHX 3224 100, Withdrawal Sleeve - Budget | |
| Reference | AHX 3224 100 |
| Brand | Budget |
| Inside Diameter | 100mm |
| Outside Diameter | 120mm |
| Width | 90mm |
| Weight (KG) | 1.3 |

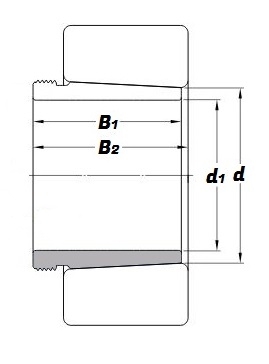

Schematic for AHX 3224 100, Withdrawal Sleeve - Budget | |
| B1 | 90mm |
| B2 | 94mm |
| d | 120mm |
| d1 | 115mm |
| KG | 1.3 |
