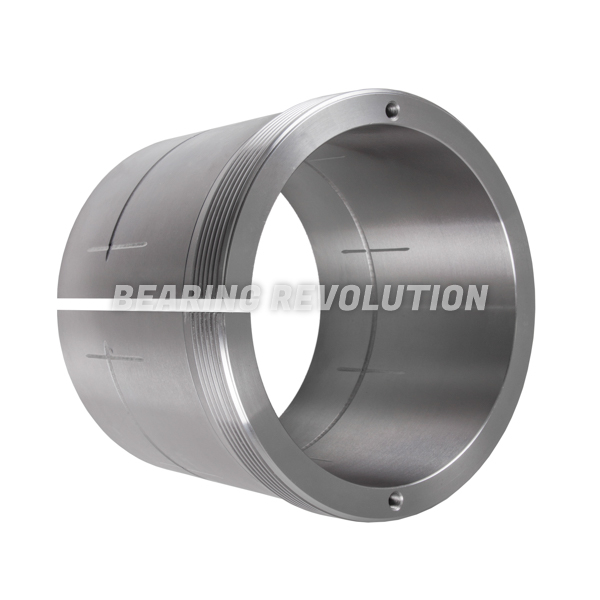

AOH 2332 150, WITHDRAWAL SLEEVE - PREMIUM
Withdrawal sleeve for oil injection with a 150mm bore suited to fit on a 160mm tapered shaft, from our Premium range. Applicable locking devices for this size would be KM 34 or hydraulic nut HMV 34 E but must be ordered separately.
Also known as AOH 2332
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£707.18 (£848.62 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AOH 2332 150, Withdrawal Sleeve - Premium | |
| Reference | AOH 2332 150 |
| Brand | Premium |
| Inside Diameter | 150mm |
| Outside Diameter | 160mm |
| Width | 140mm |
| Weight (KG) | 4.35 |

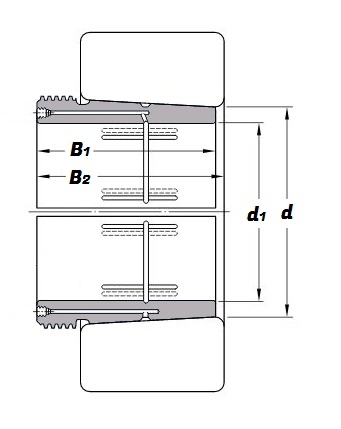

Schematic for AOH 2332 150, Withdrawal Sleeve - Premium | |
| B1 | 140mm |
| B2 | 146mm |
| d | 150mm |
| d1 | 160mm |
