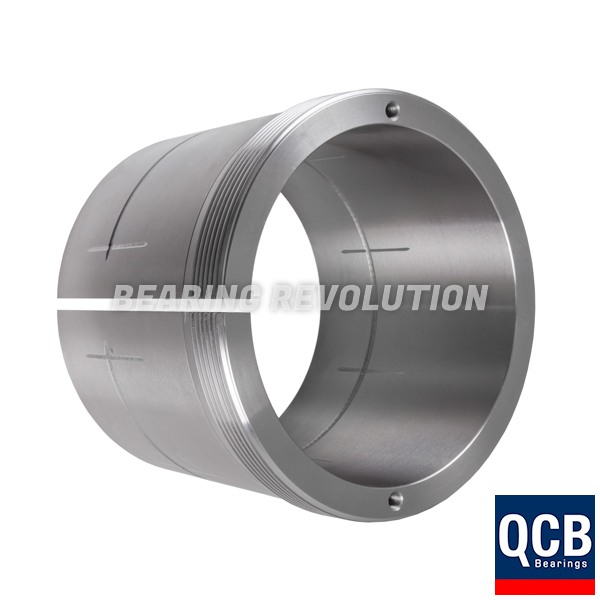

AOH 2344 200, WITHDRAWAL SLEEVE - SELECT
Withdrawal sleeve for oil injection with a 200mm bore suited to fit on a 220mm tapered shaft, from our Select Range. Applicable locking devices for this size would be HM 3048 or hydraulic nut HMV 48 E but must be ordered separately.
Also known as AOH 2344
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£1,009.82 (£1,211.78 inc VAT)
- 5 - 9£959.33 (£1,151.20 inc VAT)
- 10 +£908.85 (£1,090.62 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AOH 2344 200, Withdrawal Sleeve - Select | |
| Reference | AOH 2344 200 |
| Brand | Select |
| Inside Diameter | 200mm |
| Outside Diameter | 220mm |
| Width | 181mm |
| Weight (KG) | 13.5 |

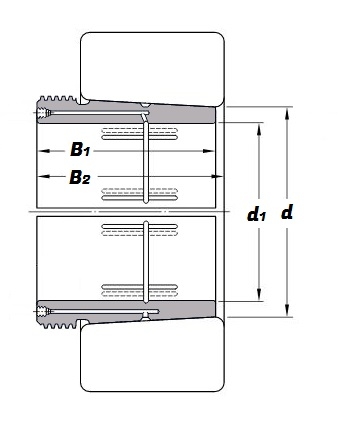

Schematic for AOH 2344 200, Withdrawal Sleeve - Select | |
| B1 | 181mm |
| B2 | 189mm |
| d | 220mm |
| d1 | 200mm |
| KG | 13.5 |
