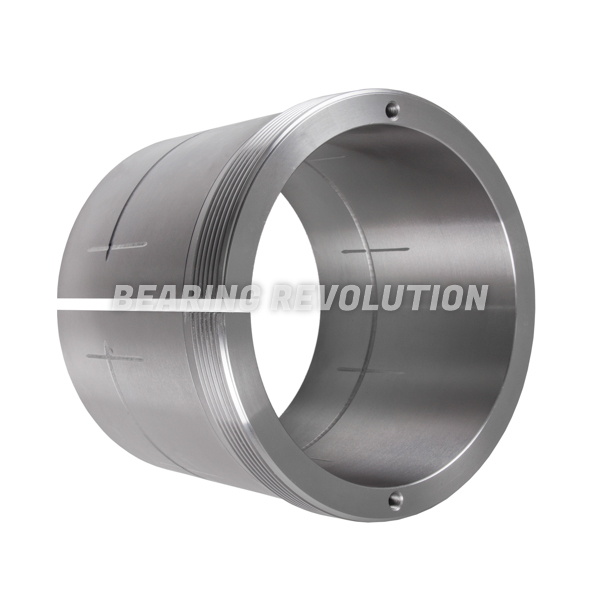

AOH 24048 220, WITHDRAWAL SLEEVE - BUDGET
Withdrawal sleeve for oil injection with a 220mm bore suited to fit on a 240mm tapered shaft, from our Budget range. Applicable locking devices for this size would be HM 50 T or hydraulic nut HMV 50 E but must be ordered separately.
Also known as AOH 24048
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£716.17 (£859.40 inc VAT)
- 5 - 9£680.37 (£816.44 inc VAT)
- 10 +£644.56 (£773.47 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AOH 24048 220, Withdrawal Sleeve - Budget | |
| Reference | AOH 24048 220 |
| Brand | Budget |
| Inside Diameter | 220mm |
| Outside Diameter | 240mm |
| Width | 138mm |
| Weight (KG) | 8.05 |

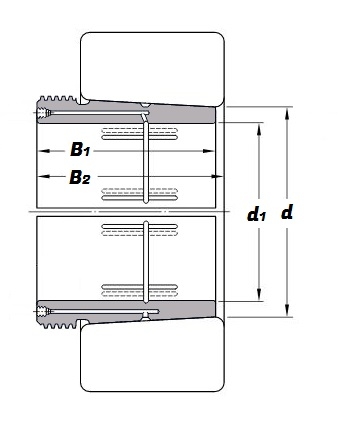

Schematic for AOH 24048 220, Withdrawal Sleeve - Budget | |
| B1 | 138mm |
| B2 | 153mm |
| d | 220mm |
| d1 | 240mm |
