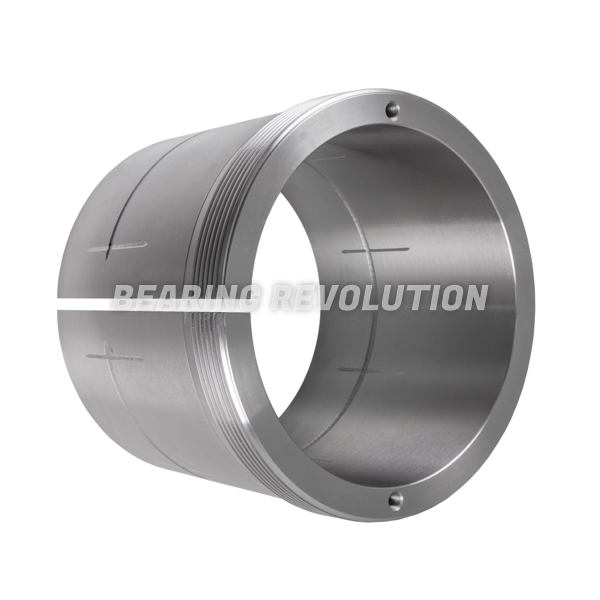

AOH 24060 280, WITHDRAWAL SLEEVE - PREMIUM
Withdrawal sleeve for oil injection with a 280mm bore suited to fit on a 300mm tapered shaft, from our Premium range. Applicable locking devices for this size would be HM 3164 or hydraulic nut HMV 64 E but must be ordered separately.
Also known as AOH 24060
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£2,198.98 (£2,638.78 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AOH 24060 280, Withdrawal Sleeve - Premium | |
| Reference | AOH 24060 280 |
| Brand | Premium |
| Inside Diameter | 280mm |
| Outside Diameter | 300mm |
| Width | 184mm |
| Weight (KG) | 17 |

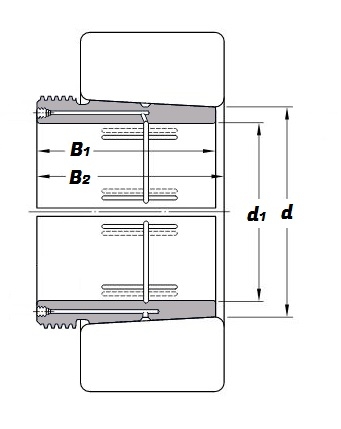

Schematic for AOH 24060 280, Withdrawal Sleeve - Premium | |
| B1 | 184mm |
| B2 | 202mm |
| d | 280mm |
| d1 | 300mm |
