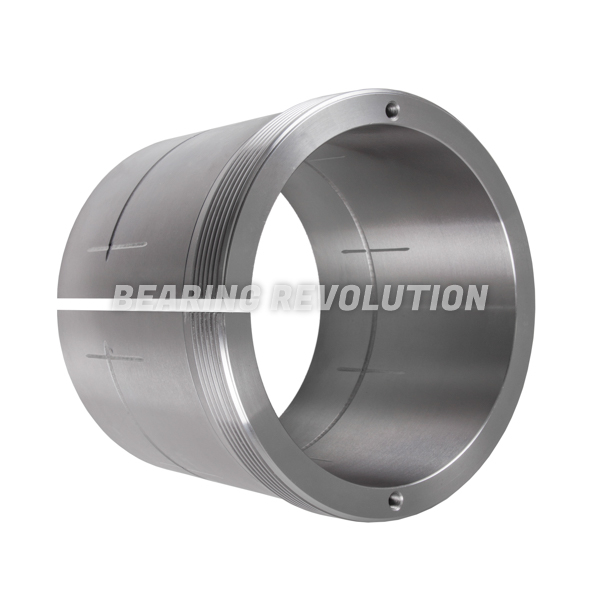

AOH 24152 240, WITHDRAWAL SLEEVE - BUDGET
Withdrawal sleeve for oil injection with a 240mm bore suited to fit on a 260mm tapered shaft, from our Budget range. Applicable locking devices for this size would be HM 3056 or hydraulic nut HMV 56 E but must be ordered separately.
Also known as AOH 24152
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£1,206.56 (£1,447.87 inc VAT)
- 5 - 9£1,146.23 (£1,375.48 inc VAT)
- 10 +£1,085.89 (£1,303.07 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AOH 24152 240, Withdrawal Sleeve - Budget | |
| Reference | AOH 24152 240 |
| Brand | Budget |
| Inside Diameter | 240mm |
| Outside Diameter | 260mm |
| Width | 202mm |
| Weight (KG) | 14 |

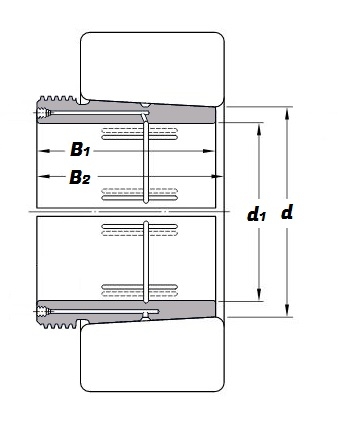

Schematic for AOH 24152 240, Withdrawal Sleeve - Budget | |
| B1 | 202mm |
| B2 | 218mm |
| d | 240mm |
| d1 | 260mm |
