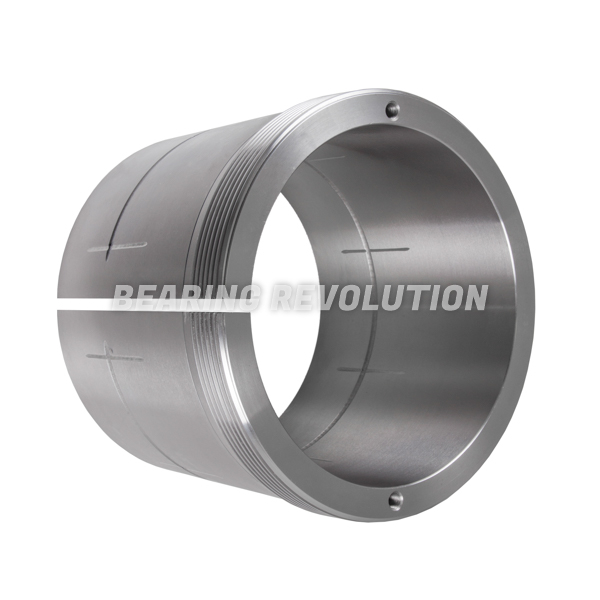

AOH 3064 300, WITHDRAWAL SLEEVE - PREMIUM
Withdrawal sleeve for oil injection with a 300mm bore suited to fit on a 320mm tapered shaft, from our Premium range. Applicable locking devices for this size would be HM3168 or hydraulic nut HMV 68 E but must be ordered separately.
Also known as AOH 3064
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£4,138.54 (£4,966.25 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AOH 3064 300, Withdrawal Sleeve - Premium | |
| Reference | AOH 3064 300 |
| Brand | Premium |
| Inside Diameter | 300mm |
| Outside Diameter | 320mm |
| Width | 149mm |
| Weight (KG) | 16.5 |

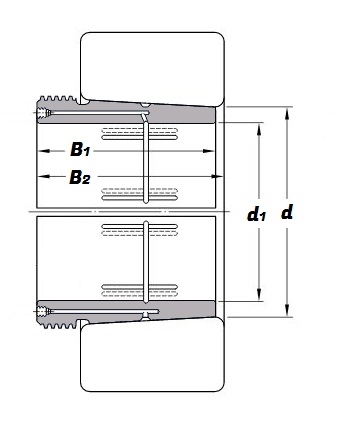

Schematic for AOH 3064 300, Withdrawal Sleeve - Premium | |
| B1 | 149mm |
| B2 | 157mm |
| d | 300mm |
| d1 | 320mm |
