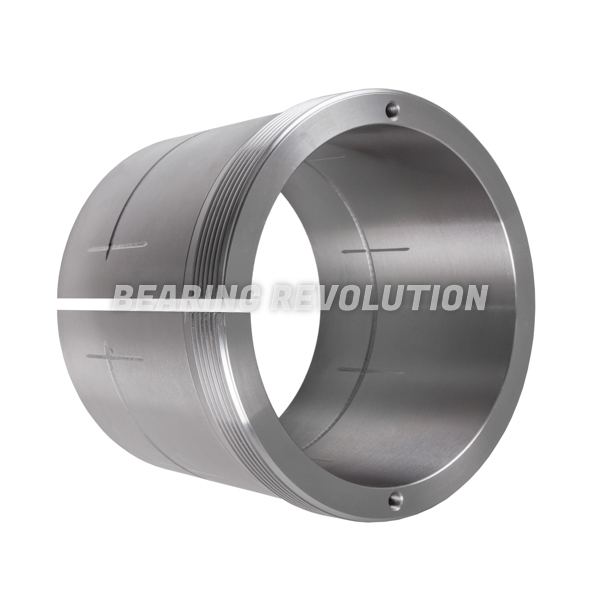

AOH 3068 320, WITHDRAWAL SLEEVE - BUDGET
Withdrawal sleeve for oil injection with a 320mm bore suited to fit on a 340mm tapered shaft, from our Budget range. Applicable locking devices for this size would be HM 3072 or hydraulic nut HMV 72 E but must be ordered separately.
Also known as AOH 3068
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£2,416.47 (£2,899.76 inc VAT)
- 5 - 9£2,295.65 (£2,754.78 inc VAT)
- 10 +£2,174.83 (£2,609.80 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AOH 3068 320, Withdrawal Sleeve - Budget | |
| Reference | AOH 3068 320 |
| Brand | Budget |
| Inside Diameter | 320mm |
| Outside Diameter | 340mm |
| Width | 162mm |
| Weight (KG) | 19 |

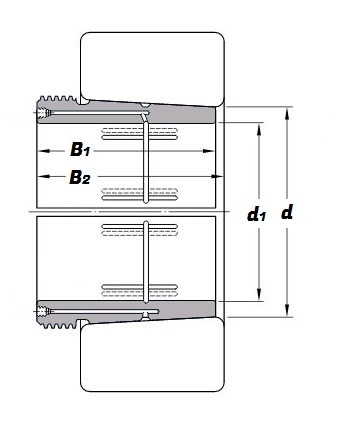

Schematic for AOH 3068 320, Withdrawal Sleeve - Budget | |
| B1 | 162mm |
| B2 | 171mm |
| d | 320mm |
| d1 | 340mm |
