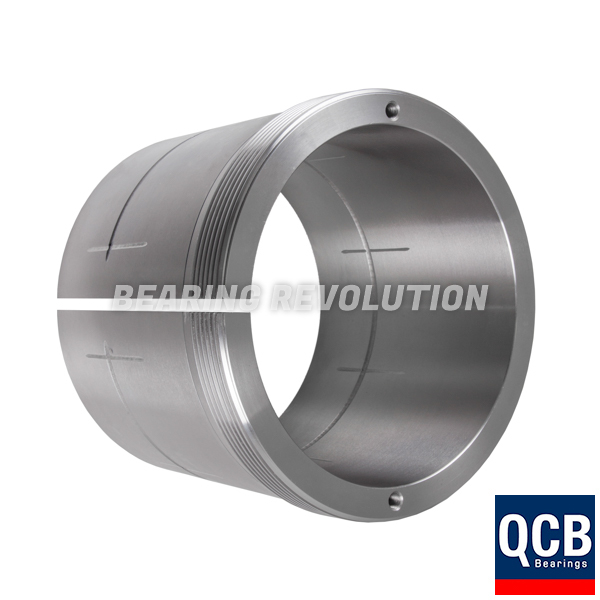

AOH 3144 200, WITHDRAWAL SLEEVE - SELECT
Withdrawal sleeve for oil injection with a 200mm bore suited to fit on a 220mm tapered shaft, from our Select Range. Applicable locking devices for this size would be HM 3048 or hydraulic nut HMV 48 E but must be ordered separately.
Also known as AOH 3144
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£1,012.71 (£1,215.25 inc VAT)
- 5 - 9£962.08 (£1,154.50 inc VAT)
- 10 +£911.44 (£1,093.73 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AOH 3144 200, Withdrawal Sleeve - Select | |
| Reference | AOH 3144 200 |
| Brand | Select |
| Inside Diameter | 200mm |
| Outside Diameter | 220mm |
| Width | 145mm |
| Weight (KG) | 9.3 |

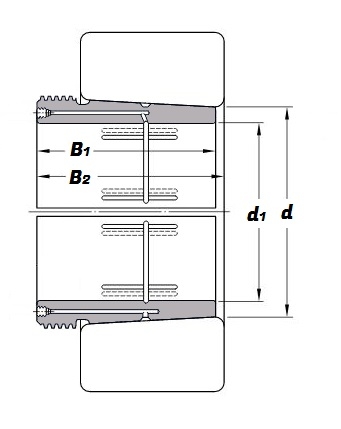

Schematic for AOH 3144 200, Withdrawal Sleeve - Select | |
| B1 | 145mm |
| B2 | 151mm |
| d | 220mm |
| d1 | 200mm |
| KG | 9.3 |
