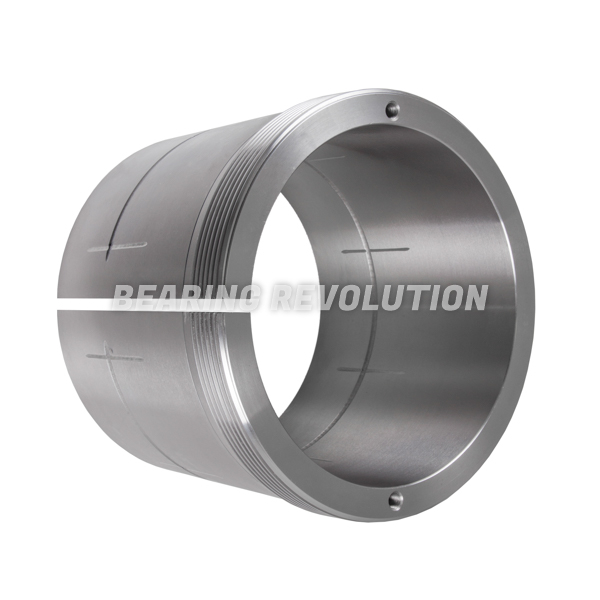

AOH 3148 220, WITHDRAWAL SLEEVE - PREMIUM
Withdrawal sleeve for oil injection with a 220mm bore suited to fit on a 240mm tapered shaft, from our Premium range. Applicable locking devices for this size would be HM 3052 or hydraulic nut HMV 52 E but must be ordered separately.
Also known as AOH 3148
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£1,450.52 (£1,740.62 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AOH 3148 220, Withdrawal Sleeve - Premium | |
| Reference | AOH 3148 220 |
| Brand | Premium |
| Inside Diameter | 220mm |
| Outside Diameter | 240mm |
| Width | 154mm |
| Weight (KG) | 12 |

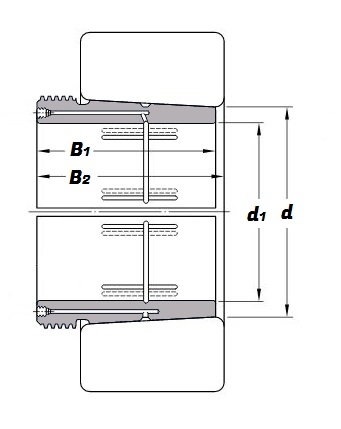

Schematic for AOH 3148 220, Withdrawal Sleeve - Premium | |
| B1 | 154mm |
| B2 | 161mm |
| d | 220mm |
| d1 | 240mm |
