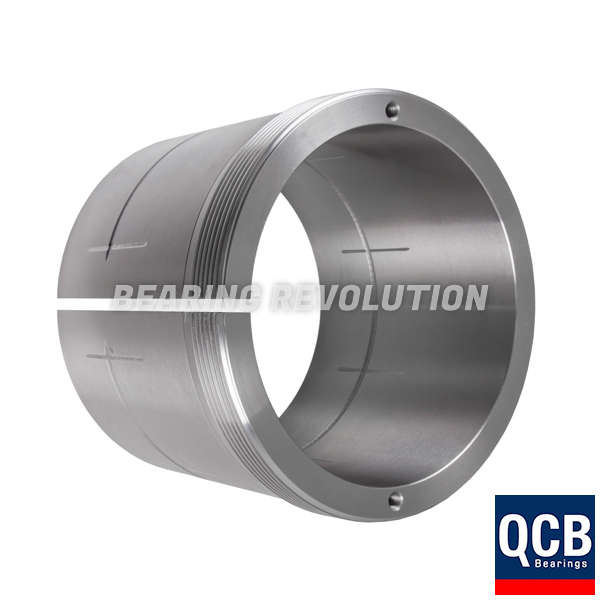

AOH 3152G 240, WITHDRAWAL SLEEVE - SELECT
Withdrawal sleeve for oil injection with a 240mm bore suited to fit on a 260mm tapered shaft, from our Select Range. Applicable locking devices for this size would be HM 3056 or hydraulic nut HMV 56 E but must be ordered separately.
Also known as AOH 3152G
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£1,462.18 (£1,754.62 inc VAT)
- 5 - 9£1,389.06 (£1,666.87 inc VAT)
- 10 +£1,315.97 (£1,579.16 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AOH 3152G 240, Withdrawal Sleeve - Select | |
| Reference | AOH 3152G 240 |
| Brand | Select |
| Inside Diameter | 240mm |
| Outside Diameter | 260mm |
| Width | 172mm |
| Weight (KG) | 15.5 |

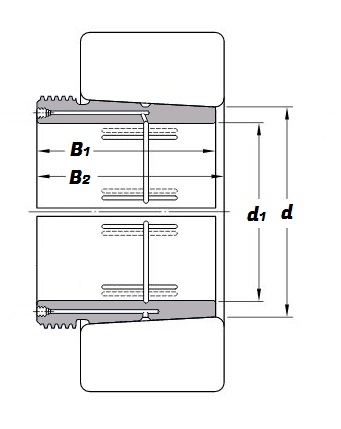

Schematic for AOH 3152G 240, Withdrawal Sleeve - Select | |
| B1 | 172mm |
| B2 | 179mm |
| d | 260mm |
| d1 | 240mm |
| KG | 15.5 |
