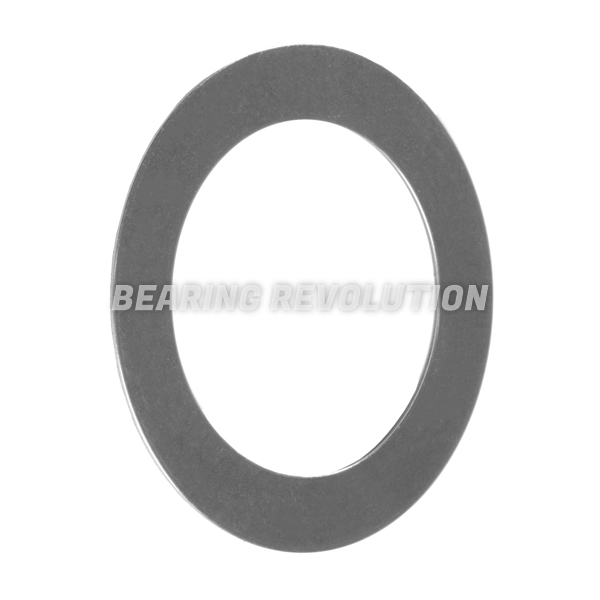

AS 100135, AXIAL BEARING WASHER WITH A 100MM BORE - BUDGET RANGE
AS Series Bearing Washer that can be used as shaft or housing locating washer suitable for AXK and K 811 cage assemblies. Please order these separately. 100mm ID, 135mm OD, 1mm Width.
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£9.69 (£11.63 inc VAT)
- 5 - 9£9.20 (£11.04 inc VAT)
- 10 +£8.72 (£10.46 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AS 100135, Axial Bearing Washer with a 100mm bore - Budget Range | |
| Reference | AS 100135 |
| Brand | Budget |
| Inside Diameter | 100mm |
| Outside Diameter | 135mm |
| Width | 1mm |
| Weight (KG) | 0.05 |

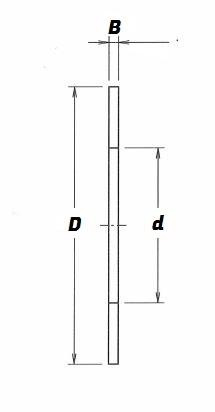

Schematic for AS 100135, Axial Bearing Washer with a 100mm bore - Budget Range | |
| B | 1mm |
| d | 100mm |
| D | 135mm |
