CSA 203
BEARING INSERT WITH A 17MM BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and Eccentric Collar lock to allow tightening against the shaft, from our TR Range. ID 17mm, OD 40mm, width 12mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1317 17 EC, 131717EC, CSA203
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£16.07 (£19.28 inc VAT)
- 5 - 9£15.26 (£18.31 inc VAT)
- 10 +£14.46 (£17.35 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for CSA 203 | |
| Reference | 1317 17 EC |
| Brand | Budget |
| Inside Diameter | 17mm |
| Outside Diameter | 40mm |
| Width | 12mm |
| Dyn | 9550 |
| Stat | 4780 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.1 |

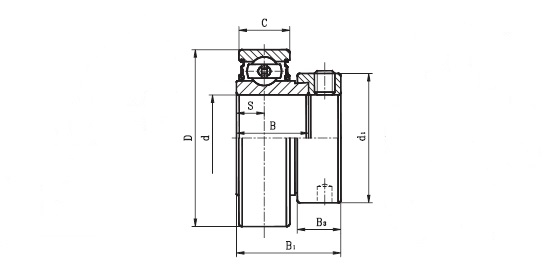

Schematic for CSA 203 | |
| B | 19.1mm |
| B1 | 28.6mm |
| B3 | 13.5mm |
| C | 12mm |
| d | 17mm |
| D | 40mm |
| d1 | 27.2mm |
| h | 3.6mm |
| KG | 0.1 |
| S | 6.5mm |
