CSA 206 18
BEARING INSERT WITH A 1.1/8 INCH BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and Eccentric Collar lock to allow tightening against the shaft, from our TR Range. ID 1.1/8", OD 62mm, width 16mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1330 1.1/8 EC, 13301.1/8EC, CSA20618
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£30.10 (£36.12 inc VAT)
- 5 - 9£28.60 (£34.32 inc VAT)
- 10 +£27.09 (£32.51 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for CSA 206 18 | |
| Reference | 1330 1.1/8 EC |
| Brand | Budget |
| Inside Diameter | 1.1/8" |
| Outside Diameter | 62mm |
| Width | 16mm |
| Dyn | 19500 |
| Stat | 11200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.32 |

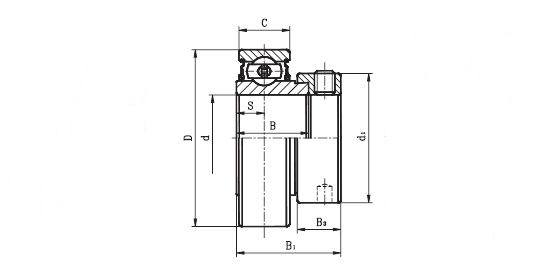

Schematic for CSA 206 18 | |
| B | 23.8mm |
| B1 | 35.7mm |
| B3 | 15.9mm |
| C | 16mm |
| d | 1.1/8" |
| D | 62mm |
| d1 | 44.1mm |
| h | 5mm |
| KG | 0.3 |
| S | 9mm |
