CSA 208 24

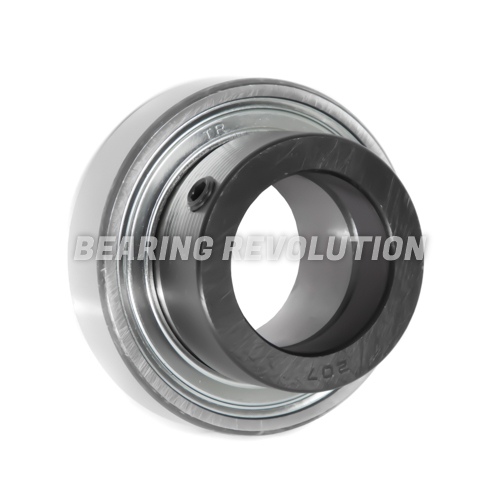

BEARING INSERT WITH A 1.1/2 INCH BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and Eccentric Collar lock to allow tightening against the shaft, from our TR Range. ID 1.1/2", OD 80mm, width 18mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1340 1.1/2 EC, 13401.1/2EC, CSA20824
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£27.83 (£33.40 inc VAT)
- 5 - 9£26.44 (£31.73 inc VAT)
- 10 +£25.04 (£30.05 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for CSA 208 24 | |
| Reference | 1340 1.1/2 EC |
| Brand | Budget |
| Inside Diameter | 1.1/2" |
| Outside Diameter | 80mm |
| Width | 18mm |
| Dyn | 29600 |
| Stat | 18200 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.65 |
Schematic for CSA 208 24 | |
| B | 30.2mm |
| B1 | 43.7mm |
| B3 | 18.3mm |
| C | 18mm |
| d | 1.1/2" |
| D | 80mm |
| d1 | 58mm |
| h | 6.2mm |
| KG | 0.61 |
| S | 11mm |
