CSB 206 19

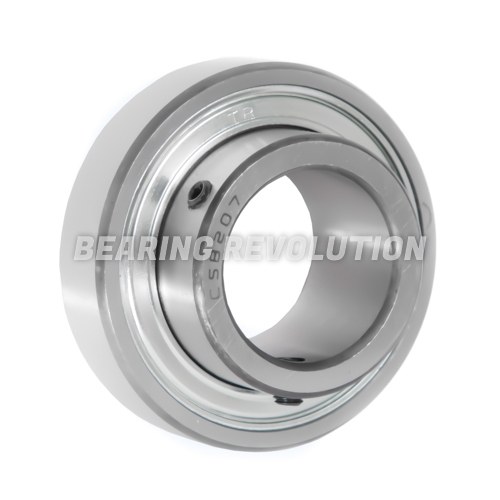

BEARING INSERT WITH A 1.3/16 INCH BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and grub screws to allow tightening against the shaft, from our TR Range. ID 1.3/16", OD 62mm, width 16mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1330 1.3/16, 13301.3/16, CSB20619
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£33.29 (£39.95 inc VAT)
- 5 - 9£31.62 (£37.94 inc VAT)
- 10 +£29.96 (£35.95 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for CSB 206 19 | |
| Reference | 1330 1.3/16 |
| Brand | Budget |
| Inside Diameter | 1.3/16" |
| Outside Diameter | 62mm |
| Width | 16mm |
| Dyn | 19500 |
| Stat | 11200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.25 |

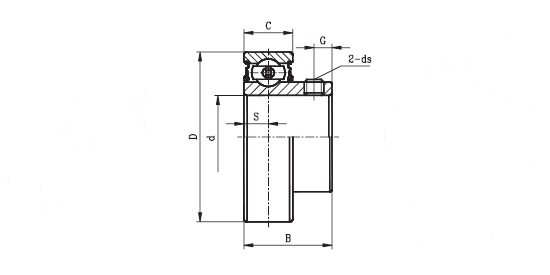

Schematic for CSB 206 19 | |
| B | 30mm |
| C | 16mm |
| d | 1.3/16" |
| D | 62mm |
| ds | M6x1 |
| G | 6mm |
| h | 5mm |
| KG | 0.23 |
| S | 8mm |
