CSB 206
BEARING INSERT WITH A 30MM BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and grub screws to allow tightening against the shaft, from our TR Range. ID 30mm, OD 62mm, width 16mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1330 30, 133030, CSB206
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£16.28 (£19.54 inc VAT)
- 5 - 9£15.47 (£18.56 inc VAT)
- 10 +£14.65 (£17.58 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for CSB 206 | |
| Reference | 1330 30 |
| Brand | Budget |
| Inside Diameter | 30mm |
| Outside Diameter | 62mm |
| Width | 16mm |
| Dyn | 19500 |
| Stat | 11200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.25 |

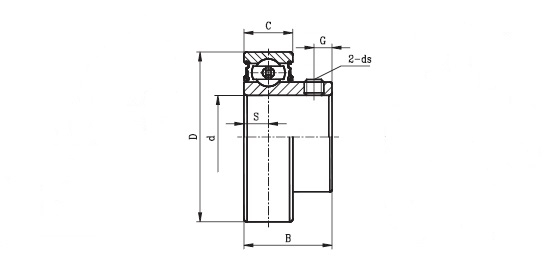

Schematic for CSB 206 | |
| B | 30mm |
| C | 16mm |
| d | 30mm |
| D | 62mm |
| ds | M6x1 |
| G | 6mm |
| h | 5mm |
| KG | 0.23 |
| S | 8mm |
