CSB 207 20

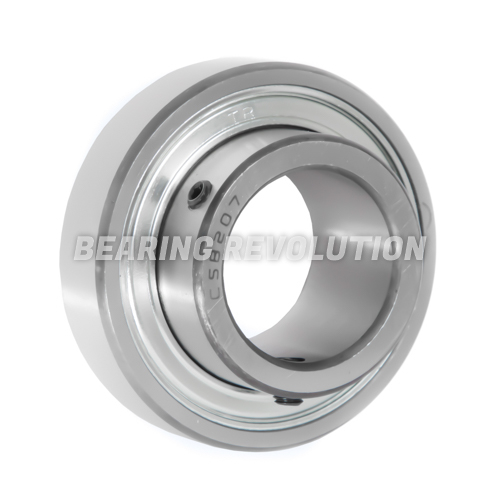

BEARING INSERT WITH A 1.1/4 INCH BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and grub screws to allow tightening against the shaft, from our TR Range. ID 1.1/4", OD 72mm, width 17mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1335 1.1/4, 13351.1/4, CSB20720
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£22.37 (£26.84 inc VAT)
- 5 - 9£21.25 (£25.50 inc VAT)
- 10 +£20.13 (£24.16 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for CSB 207 20 | |
| Reference | 1335 1.1/4 |
| Brand | Budget |
| Inside Diameter | 1.1/4" |
| Outside Diameter | 72mm |
| Width | 17mm |
| Dyn | 25700 |
| Stat | 15200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.43 |

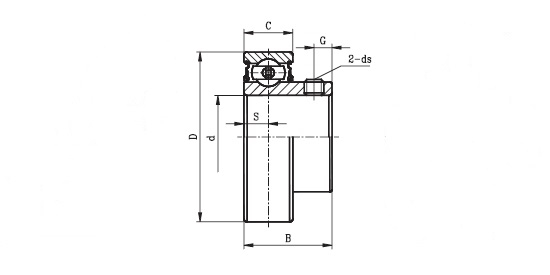

Schematic for CSB 207 20 | |
| B | 32mm |
| C | 17mm |
| d | 1.1/4" |
| D | 72mm |
| ds | M6x1 |
| G | 6.5mm |
| h | 5.7mm |
| KG | 0.43 |
| S | 8.5mm |
