Please note photos are for illustration purposes only

CSK 12 PP C3, ONE WAY CLUTCH BEARING WITH A 12MM BORE - SELECT RANGE

Name: CSK 12 PP C3, One Way Clutch Bearing with a 12mm bore - Select range
Brand: Select
Price: 53.05 GBP
Availability: InStock

BR Stock No. S-CSK 12 PP C3 | Brand: Select | Mfr. Part No. CSK 12 PP C3

Sprag type freewheel one way clutch bearing with two keyways, one on both the inner and outer race. 12mm bore, 32mm OD, 10mm width.

Also known as KK 12 PP, CSK12PPC3

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£44.21 (£53.05 inc VAT)
Bulk Order PricesENQUIRE

CSK 12 PP C3, One Way Clutch Bearing with a 12mm bore - Select range Schematic

Specifications for CSK 12 PP C3, One Way Clutch Bearing with a 12mm bore - Select range
Reference	CSK 12 PP C3
Brand	Select
Inside Diameter	12mm
Outside Diameter	32mm
Width	10mm
Keyway	Inner Ring and Outer
Weight (KG)	0.04

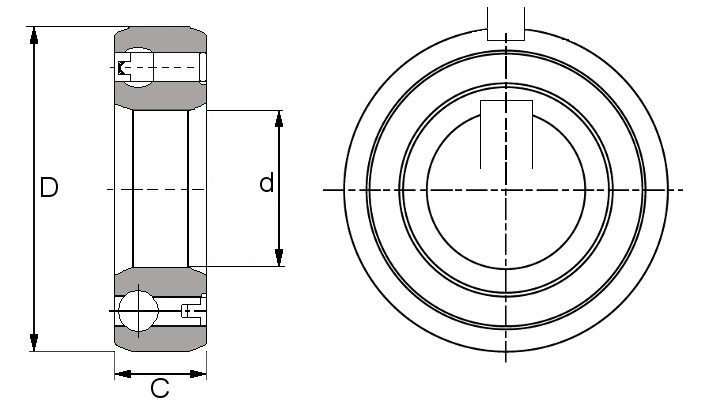

Schematic for CSK 12 PP C3, One Way Clutch Bearing with a 12mm bore - Select range
C	10mm
d	12mm
D	32mm
