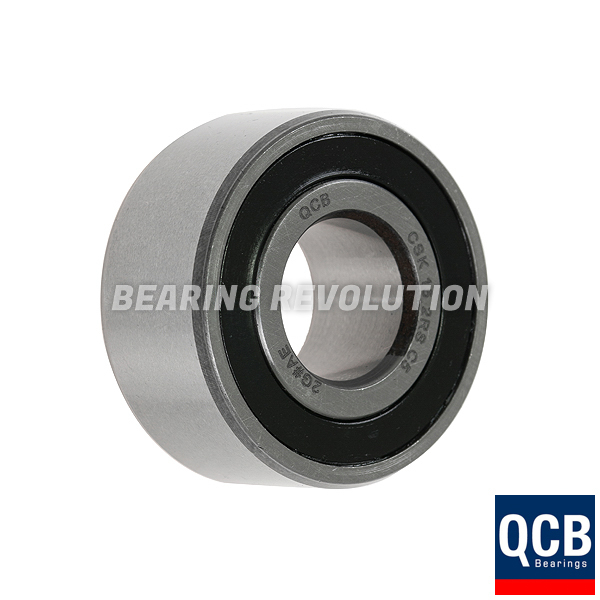

Please note photos are for illustration purposes only

CSK 15 2RS C5, ONE WAY CLUTCH BEARING WITH A 15MM BORE - SELECT RANGE

Name: CSK 15 2RS C5, One Way Clutch Bearing with a 15mm bore - Select range
Brand: Select
Price: 38.82 GBP
Availability: InStock

BR Stock No. S-CSK 15 2RS C5 | Brand: Select | Mfr. Part No. CSK 15 2RS C5

Sealed sprag type freewheel one way clutch bearing. 15mm bore, 35mm OD, 16mm width.

Also known as KK 15 2RS, CSK152RSC5

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£32.35 (£38.82 inc VAT)
Bulk Order PricesENQUIRE

CSK 15 2RS C5, One Way Clutch Bearing with a 15mm bore - Select range Schematic

Specifications for CSK 15 2RS C5, One Way Clutch Bearing with a 15mm bore - Select range
Reference	CSK 15 2RS C5
Brand	Select
Inside Diameter	15mm
Outside Diameter	35mm
Width	16mm
Keyway	No keyway
Seals / Shields	Sealed
Weight (KG)	0.090

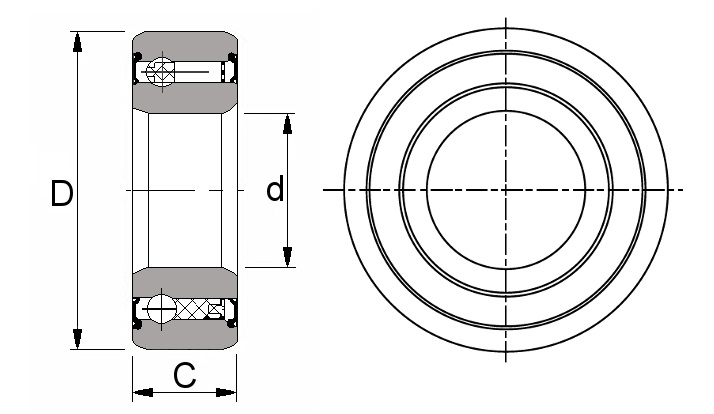

Schematic for CSK 15 2RS C5, One Way Clutch Bearing with a 15mm bore - Select range
C	16mm
d	15mm
D	35mm
