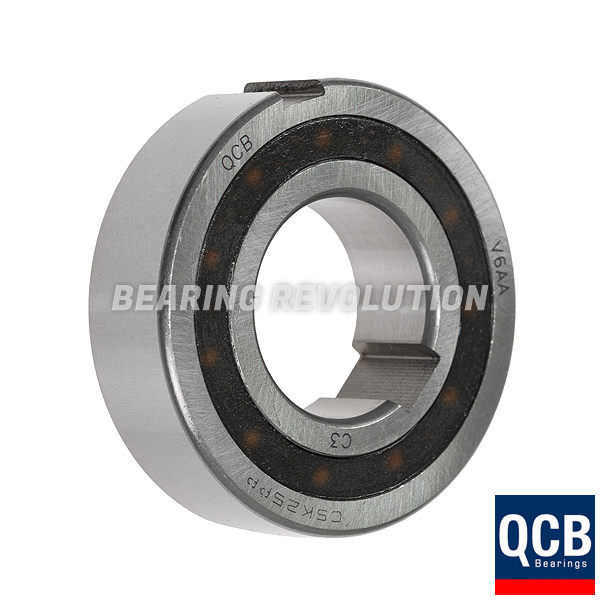

Please note photos are for illustration purposes only

CSK 15 PP C3, ONE WAY CLUTCH BEARING WITH A 15MM BORE - SELECT RANGE

Name: CSK 15 PP C3, One Way Clutch Bearing with a 15mm bore - Select range
Brand: Select
Price: 39.53 GBP
Availability: InStock

BR Stock No. S-CSK 15 PP C3 | Brand: Select | Mfr. Part No. CSK 15 PP C3

Sprag type freewheel one way clutch bearing with two keyways, one on both the inner and outer race. 15mm bore, 35mm OD, 11mm width.

Also known as KK 15 PP, CSK15PPC3

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£32.94 (£39.53 inc VAT)
Bulk Order PricesENQUIRE

CSK 15 PP C3, One Way Clutch Bearing with a 15mm bore - Select range Schematic

Specifications for CSK 15 PP C3, One Way Clutch Bearing with a 15mm bore - Select range
Reference	CSK 15 PP C3
Brand	Select
Inside Diameter	15mm
Outside Diameter	35mm
Width	11mm
Keyway	Inner Ring and Outer
Weight (KG)	0.060

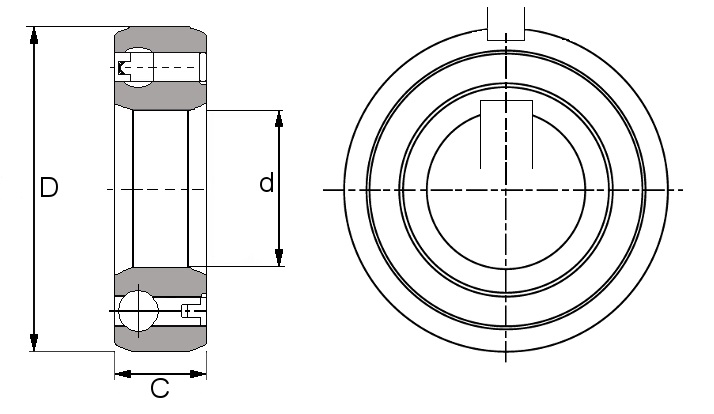

Schematic for CSK 15 PP C3, One Way Clutch Bearing with a 15mm bore - Select range
C	11mm
d	15mm
D	35mm
