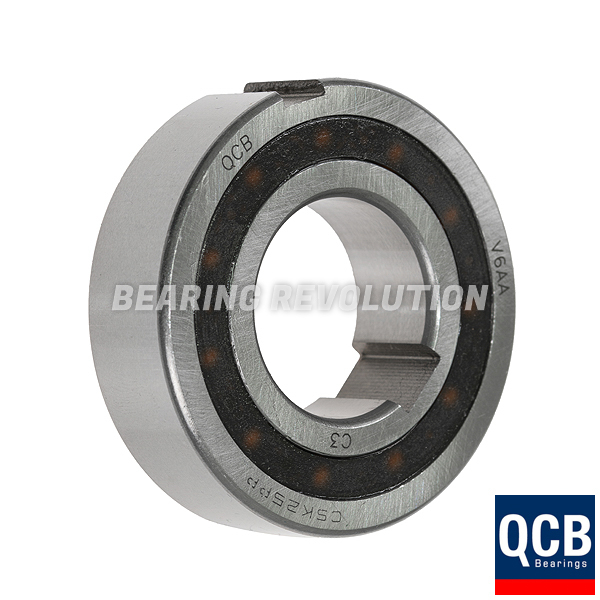

Please note photos are for illustration purposes only

CSK 17 PP C3, ONE WAY CLUTCH BEARING WITH A 17MM BORE - SELECT RANGE

Name: CSK 17 PP C3, One Way Clutch Bearing with a 17mm bore - Select range
Brand: Select
Price: 60.31 GBP
Availability: InStock

BR Stock No. S-CSK 17 PP C3 | Brand: Select | Mfr. Part No. CSK 17 PP C3

Sprag type freewheel one way clutch bearing with two keyways, one on both the inner and outer race. 17mm bore, 40mm OD, 12mm width.

Also known as KK 17 PP, CSK17PPC3

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£50.26 (£60.31 inc VAT)
Bulk Order PricesENQUIRE

CSK 17 PP C3, One Way Clutch Bearing with a 17mm bore - Select range Schematic

Specifications for CSK 17 PP C3, One Way Clutch Bearing with a 17mm bore - Select range
Reference	CSK 17 PP C3
Brand	Select
Inside Diameter	17mm
Outside Diameter	40mm
Width	12mm
Keyway	Inner Ring and Outer
Weight (KG)	0.07

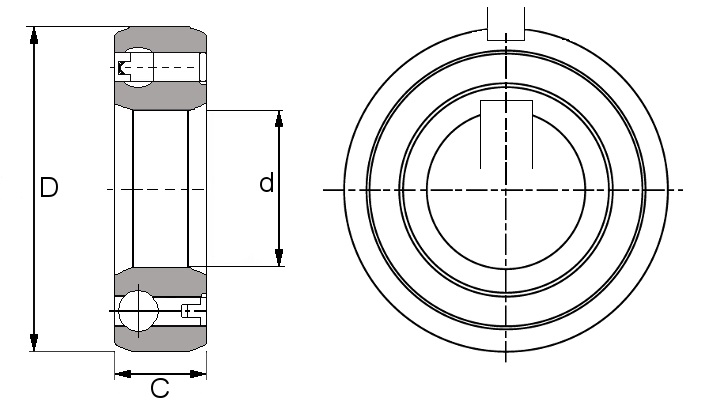

Schematic for CSK 17 PP C3, One Way Clutch Bearing with a 17mm bore - Select range
C	12mm
d	17mm
D	40mm
