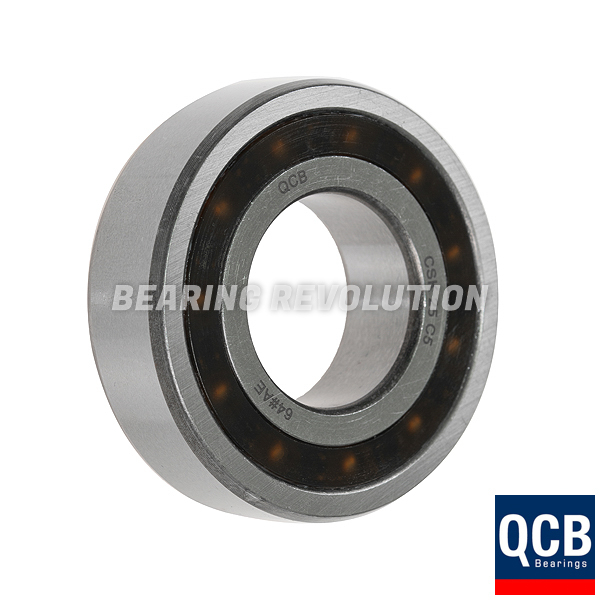

CSK 20 C5, ONE WAY CLUTCH BEARING WITH A 20MM BORE - SELECT RANGE

Name: CSK 20 C5, One Way Clutch Bearing with a 20mm bore - Select range
Brand: Select
Price: 59.12 GBP
Availability: InStock

BR Stock No. S-CSK 20 C5 | Brand: Select | Mfr. Part No. CSK 20 C5

Sprag type freewheel one way clutch bearing. 20mm bore, 47mm OD, 14mm width.

Also known as KK 20, CSK20C5

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£49.27 (£59.12 inc VAT)
Bulk Order PricesENQUIRE

CSK 20 C5, One Way Clutch Bearing with a 20mm bore - Select range Schematic

Specifications for CSK 20 C5, One Way Clutch Bearing with a 20mm bore - Select range
Reference	CSK 20 C5
Brand	Select
Inside Diameter	20mm
Outside Diameter	47mm
Width	14mm
Keyway	No keyway
Weight (KG)	0.11

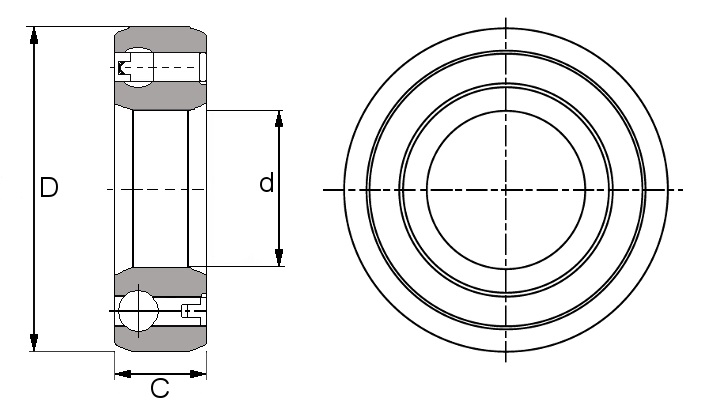

Schematic for CSK 20 C5, One Way Clutch Bearing with a 20mm bore - Select range
C	14mm
d	20mm
D	47mm
