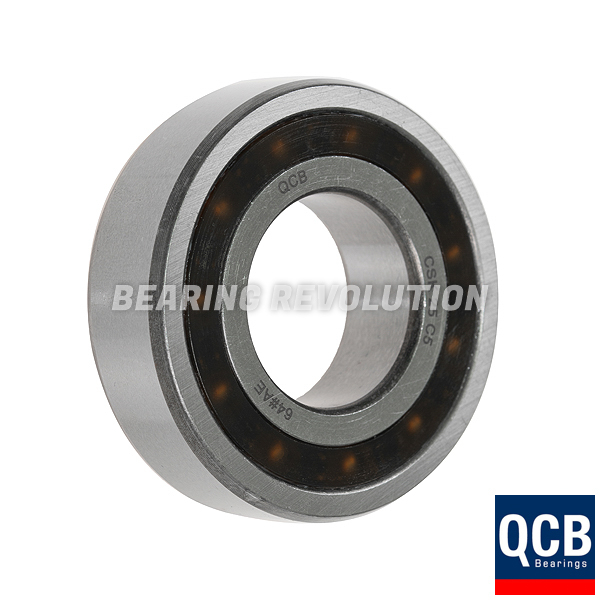

Please note photos are for illustration purposes only

CSK 30 C5, ONE WAY CLUTCH BEARING WITH A 30MM BORE - SELECT RANGE

Name: CSK 30 C5, One Way Clutch Bearing with a 30mm bore - Select range
Brand: Select
Price: 67.87 GBP
Availability: InStock

BR Stock No. S-CSK 30 C5 | Brand: Select | Mfr. Part No. CSK 30 C5

Sprag type freewheel one way clutch bearing. 30mm bore, 62mm OD, 16mm width.

Also known as KK 30, CSK30C5

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£56.56 (£67.87 inc VAT)
Bulk Order PricesENQUIRE

CSK 30 C5, One Way Clutch Bearing with a 30mm bore - Select range Schematic

Specifications for CSK 30 C5, One Way Clutch Bearing with a 30mm bore - Select range
Reference	CSK 30 C5
Brand	Select
Inside Diameter	30mm
Outside Diameter	62mm
Width	16mm
Keyway	No keyway
Weight (KG)	0.21

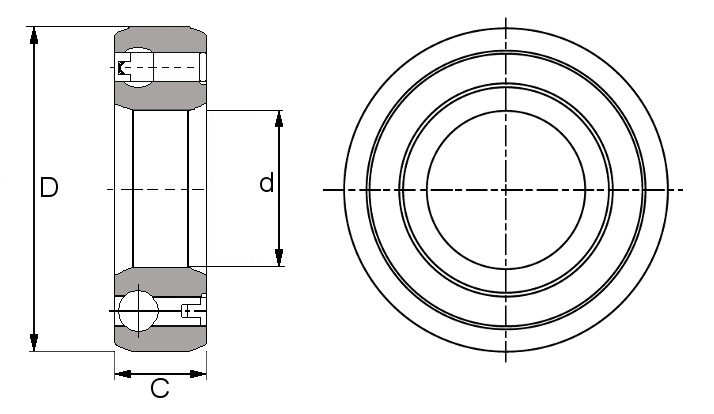

Schematic for CSK 30 C5, One Way Clutch Bearing with a 30mm bore - Select range
C	16mm
d	30mm
D	62mm
