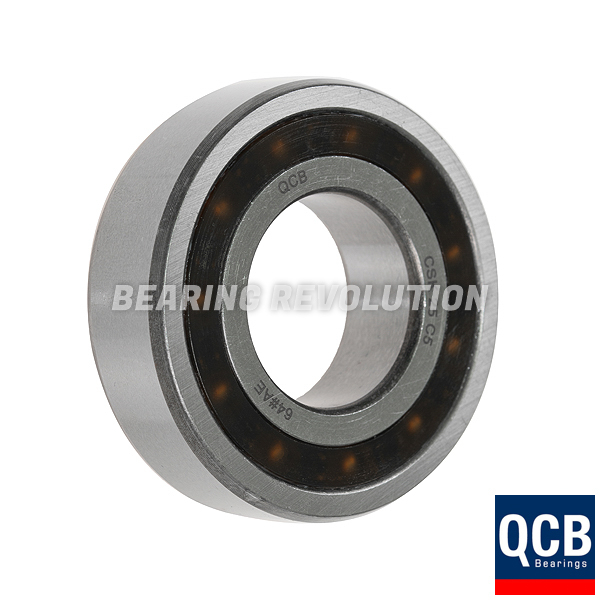

CSK 8 C5, ONE WAY CLUTCH BEARING WITH A 8MM BORE - SELECT RANGE

Name: CSK 8 C5, One Way Clutch Bearing with a 8mm bore - Select range
Brand: Select
Price: 30.62 GBP
Availability: InStock

BR Stock No. S-CSK 8 C5 | Brand: Select | Mfr. Part No. CSK 8 C5

Sprag type freewheel one way clutch bearing. 8mm bore, 22mm OD, 9mm width.

Also known as KK 8, CSK8C5

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£25.52 (£30.62 inc VAT)
Bulk Order PricesENQUIRE

CSK 8 C5, One Way Clutch Bearing with a 8mm bore - Select range Schematic

Specifications for CSK 8 C5, One Way Clutch Bearing with a 8mm bore - Select range
Reference	CSK 8 C5
Brand	Select
Inside Diameter	8mm
Outside Diameter	22mm
Width	9mm
Keyway	No keyway
Weight (KG)	0.020

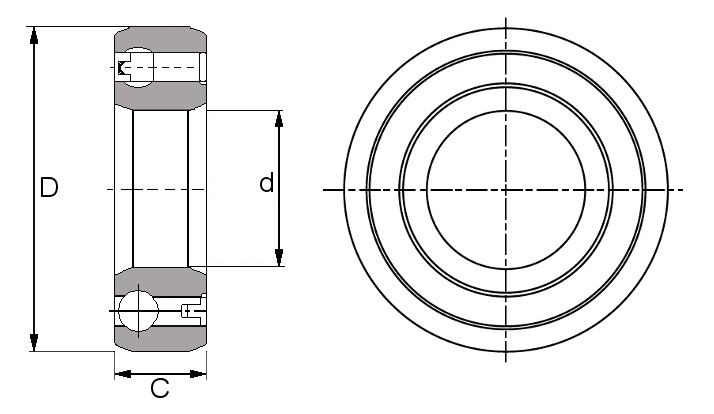

Schematic for CSK 8 C5, One Way Clutch Bearing with a 8mm bore - Select range
C	9mm
d	8mm
D	22mm
