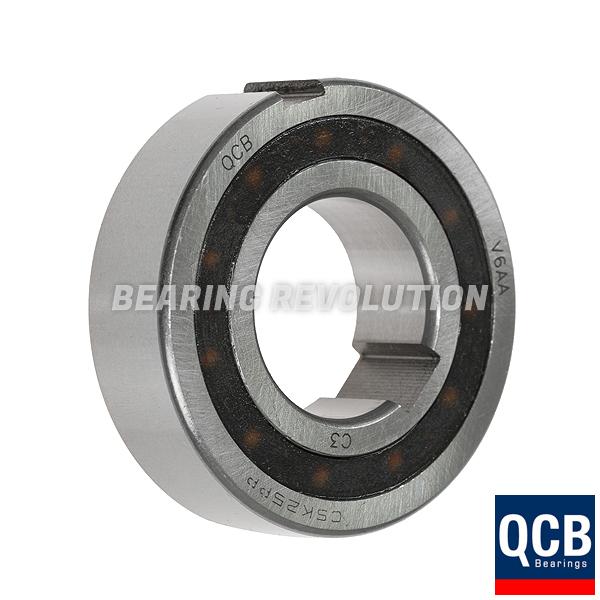

Please note photos are for illustration purposes only

CSK 8 PP C3, ONE WAY CLUTCH BEARING WITH A 8MM BORE - SELECT RANGE

Name: CSK 8 PP C3, One Way Clutch Bearing with a 8mm bore - Select range
Brand: Select
Price: 34.66 GBP
Availability: InStock

BR Stock No. S-CSK 8 PP C3 | Brand: Select | Mfr. Part No. CSK 8 PP C3

Sprag type freewheel one way clutch bearing with two keyways, one on both the inner and outer race. 8mm bore, 22mm OD, 9mm width.

Also known as KK 8 PP, CSK8PPC3

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£28.88 (£34.66 inc VAT)
Bulk Order PricesENQUIRE

CSK 8 PP C3, One Way Clutch Bearing with a 8mm bore - Select range Schematic

Specifications for CSK 8 PP C3, One Way Clutch Bearing with a 8mm bore - Select range
Reference	CSK 8 PP C3
Brand	Select
Inside Diameter	8mm
Outside Diameter	22mm
Width	9mm
Keyway	Inner Ring and Outer
Weight (KG)	0.020

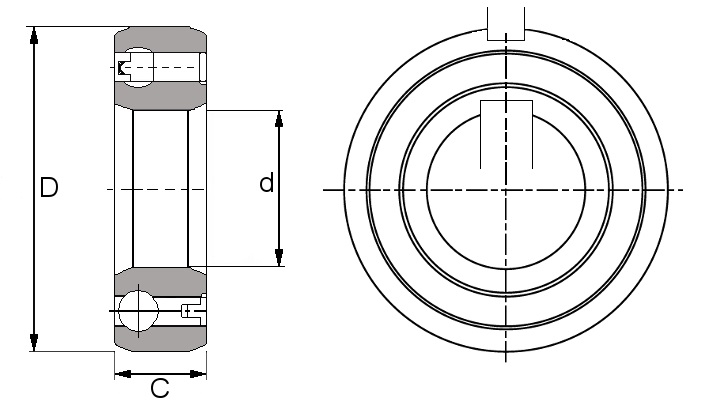

Schematic for CSK 8 PP C3, One Way Clutch Bearing with a 8mm bore - Select range
C	9mm
d	8mm
D	22mm
