FBL 205 16 S/S N6A GRN, GREEN THERMOPLASTIC FLANGE BRACKET UNIT WITH A 1 INCH BORE - SELECT RANGE

Name: FBL 205 16 S/S N6A GRN, Green Thermoplastic Flange Bracket Unit with a 1 inch bore - Select Range
Brand: Select
Price: 113.70 GBP
Availability: InStock

BR Stock No. S-FBL 205 16 S/S N6A GRN | Brand: Select | Mfr. Part No. FBL 205 16 S/S N6A GRN

Imperial UCFB type Green Thermoplastic Flange Bracket Unit with Flat Back Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£94.75 (£113.70 inc VAT)
5 - 9£90.02 (£108.02 inc VAT)
10 +£85.28 (£102.34 inc VAT)
Bulk Order PricesENQUIRE

FBL 205 16 S/S N6A GRN, Green Thermoplastic Flange Bracket Unit with a 1 inch bore - Select Range Schematic

Specifications for FBL 205 16 S/S N6A GRN, Green Thermoplastic Flange Bracket Unit with a 1 inch bore - Select Range
Reference	FBL 205 16 S/S N6A GRN
Brand	Select
Inside Diameter	1"
Bolt	M10
Max Torque	25Nm
Weight (KG)	0.29

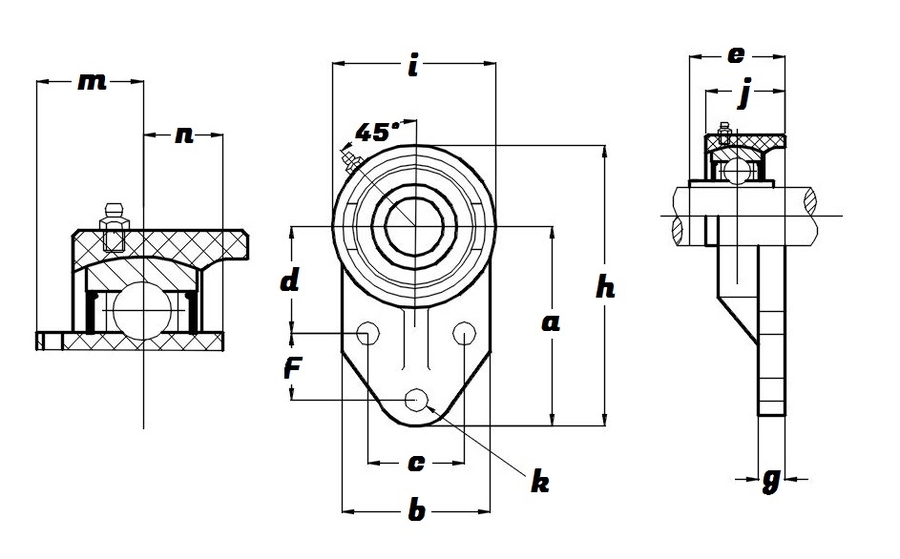

Schematic for FBL 205 16 S/S N6A GRN, Green Thermoplastic Flange Bracket Unit with a 1 inch bore - Select Range
a	85.7mm
b	63.5mm
c	41.3mm
d	46mm
e	41.2mm
f	28.6mm
g	11.4mm
h	120.6mm
i	70mm
j	34mm
k	10.7mm
KG	0.29
m	19.7mm
n	14.3mm
