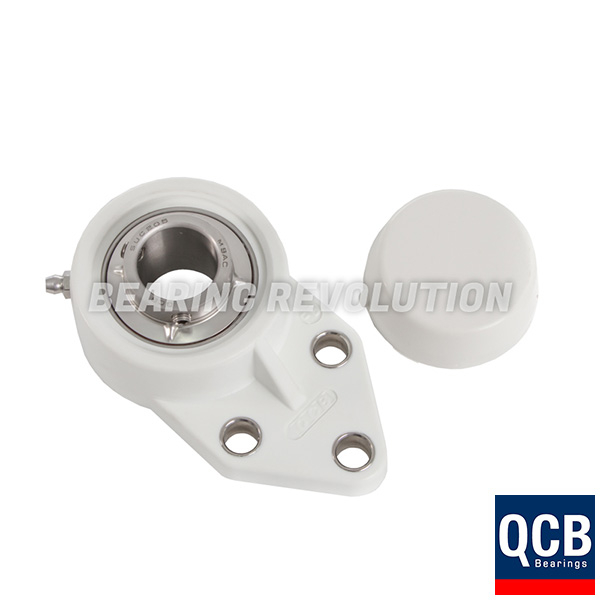

FBL 205 S/S N6 WHT, WHITE THERMOPLASTIC FLANGE BRACKET UNIT WITH A 25MM BORE - SELECT RANGE
Metric UCFB type White Thermoplastic Flange Bracket Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£66.48 (£79.78 inc VAT)
- 5 - 9£63.18 (£75.82 inc VAT)
- 10 +£59.85 (£71.82 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FBL 205 S/S N6 WHT, White Thermoplastic Flange Bracket Unit with a 25mm bore - Select Range | |
| Reference | FBL 205 S/S N6 WHT |
| Brand | Select |
| Inside Diameter | 25mm |
| Bolt | M10 |
| Max Torque | 25Nm |
| Weight (KG) | 0.29 |

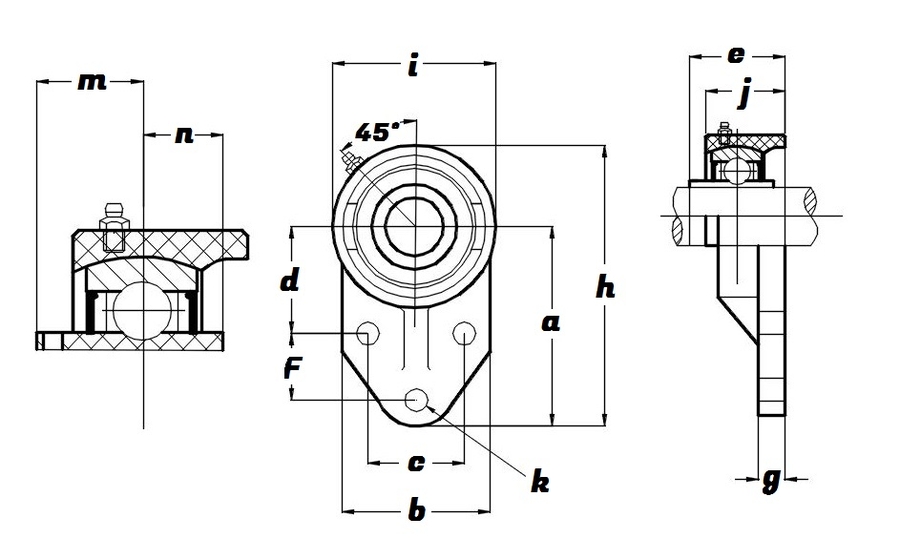

Schematic for FBL 205 S/S N6 WHT, White Thermoplastic Flange Bracket Unit with a 25mm bore - Select Range | |
| a | 85.7mm |
| b | 63.5mm |
| c | 41.3mm |
| d | 46mm |
| e | 41.2mm |
| f | 28.6mm |
| g | 11.4mm |
| h | 120.6mm |
| i | 70mm |
| j | 34mm |
| k | 10.7mm |
| KG | 0.29 |
| m | 19.7mm |
| n | 14.3mm |
