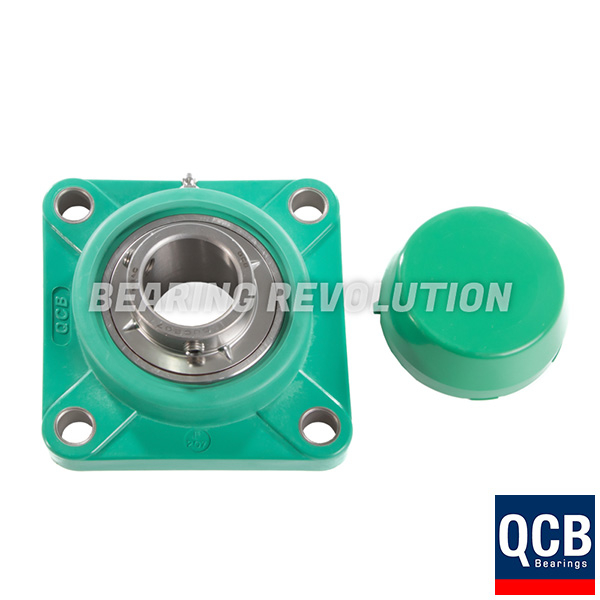

FPL 201 8 S/S N 6GRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A .1/2 INCH BORE - SELECT RANGE
Imperial SF - UCF type Green Thermoplastic Square Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£79.35 (£95.22 inc VAT)
- 5 - 9£75.39 (£90.47 inc VAT)
- 10 +£71.40 (£85.68 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FPL 201 8 S/S N 6GRN, Green Thermoplastic Square Flange Housing Unit with a .1/2 inch bore - Select Range | |
| Reference | FPL 201 8 S/S N 6GRN |
| Brand | Select |
| Inside Diameter | .1/2" |
| Bolt | M10 |
| Max Torque | 18Nm |
| Weight (KG) | 0.25 |
Schematic for FPL 201 8 S/S N 6GRN, Green Thermoplastic Square Flange Housing Unit with a .1/2 inch bore - Select Range | |
| a | 86mm |
| Bi | 31mm |
| e | 63.5mm |
| g | 13.4mm |
| i | 18mm |
| KG | 0.25 |
| l | 27.8mm |
| n | 12.7mm |
| s | 11mm |
| z | 36.3mm |
