FPL 204 S/S N 6 GRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 20 BORE - SELECT RANGE

Name: FPL 204 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 20 bore - Select Range
Brand: Select
Price: 67.28 GBP
Availability: InStock

BR Stock No. S-FPL 204 S/S N 6 GRN | Brand: Select | Mfr. Part No. FPL 204 S/S N 6 GRN

Metric SF - UCF type Green Thermoplastic Square Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£56.07 (£67.28 inc VAT)
5 - 9£53.29 (£63.95 inc VAT)
10 +£50.45 (£60.54 inc VAT)
Bulk Order PricesENQUIRE

FPL 204 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 20 bore - Select Range Schematic

Specifications for FPL 204 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 20 bore - Select Range
Reference	FPL 204 S/S N 6 GRN
Brand	Select
Inside Diameter	20mm
Bolt	M10
Max Torque	18Nm
Weight (KG)	0.25

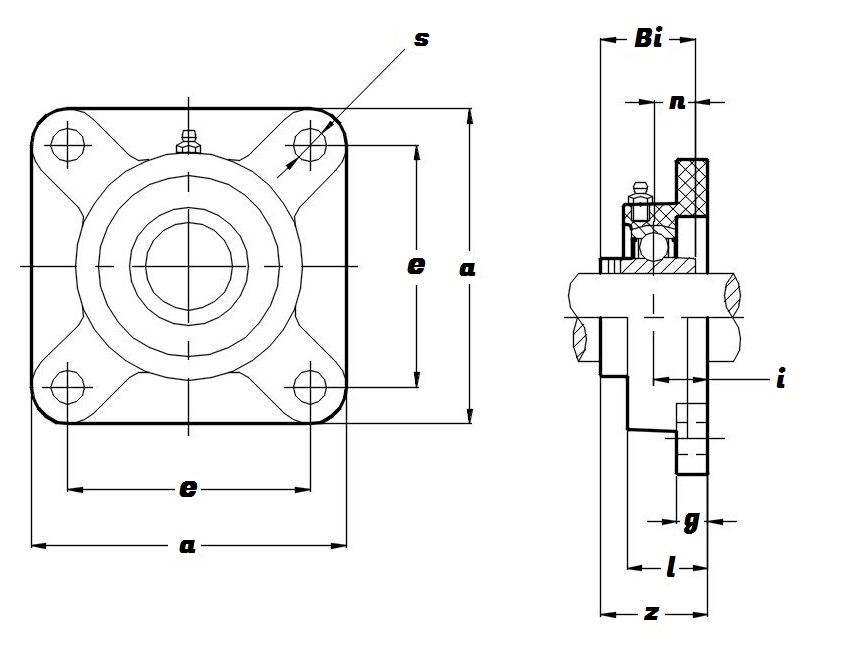

Schematic for FPL 204 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 20 bore - Select Range
a	86mm
Bi	31mm
e	63.5mm
g	13.4mm
i	18mm
KG	0.25
l	27.8mm
n	12.7mm
s	11mm
z	36.3mm
