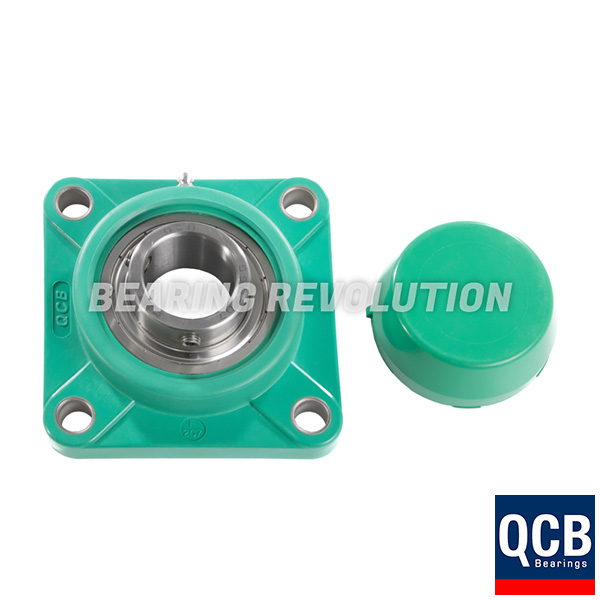

FPL 205 16 S/S N6A GRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 1 INCH BORE - SELECT RANGE

Name: FPL 205 16 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a 1 inch bore - Select Range
Brand: Select
Price: 85.64 GBP
Availability: InStock

BR Stock No. S-FPL 205 16 S/S N6A GRN | Brand: Select | Mfr. Part No. FPL 205 16 S/S N6A GRN

Imperial SF - UCF type Green Thermoplastic Square Flange Housing Unit with Flat Back Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£71.37 (£85.64 inc VAT)
5 - 9£67.80 (£81.36 inc VAT)
10 +£64.23 (£77.08 inc VAT)
Bulk Order PricesENQUIRE

FPL 205 16 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a 1 inch bore - Select Range Schematic

Specifications for FPL 205 16 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a 1 inch bore - Select Range
Reference	FPL 205 16 S/S N6A GRN
Brand	Select
Inside Diameter	1"
Bolt	M10
Max Torque	25Nm
Weight (KG)	0.32

Schematic for FPL 205 16 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a 1 inch bore - Select Range
a	95mm
Bi	34mm
e	70mm
g	14mm
i	17mm
KG	0.32
l	28mm
n	14.3mm
s	11mm
z	36.7mm
