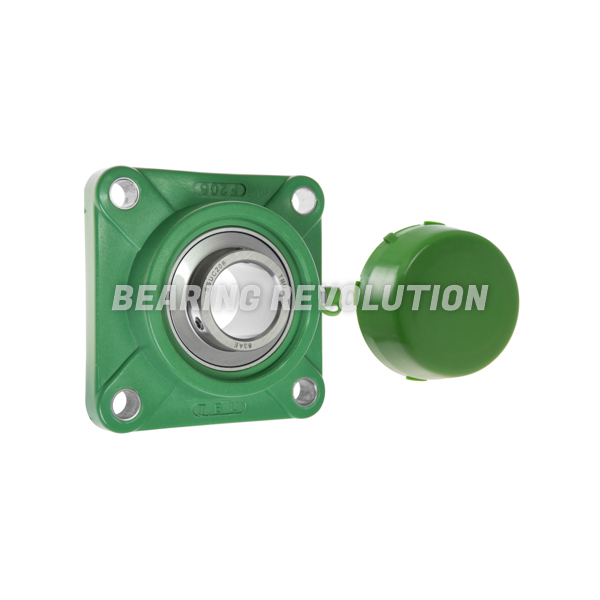

FPL 207 S/S N 6 GRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 35MM BORE - BUDGET RANGE
Metric SF - UCF type Green Thermoplastic Square Flange Housing Unit complete with Stainless Steel insert filled with food grade grease from our Budget range.
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£71.96 (£86.35 inc VAT)
- 5 - 9£68.36 (£82.03 inc VAT)
- 10 +£64.77 (£77.72 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FPL 207 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 35mm bore - Budget Range | |
| Reference | FPL 207 S/S N 6 GRN |
| Brand | Budget |
| Inside Diameter | 35mm |
| Bolt | M12 |
| Max Torque | 35Nm |
| Weight (KG) | 0.77 |
Schematic for FPL 207 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 35mm bore - Budget Range | |
| a | 118mm |
| Bi | 42.9mm |
| e | 92mm |
| g | 15.5mm |
| i | 21.5mm |
| KG | 0.77 |
| l | 34.8mm |
| n | 17.5mm |
| s | 13mm |
| z | 46.9mm |
