FPL 210 32 S/S N6 GRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 2 INCH BORE - SELECT RANGE

Name: FPL 210 32 S/S N6 GRN, Green Thermoplastic Square Flange Housing Unit with a 2 inch bore - Select Range
Brand: Select
Price: 268.02 GBP
Availability: InStock

BR Stock No. S-FPL 210 32 S/S N6 GRN | Brand: Select | Mfr. Part No. FPL 210 32 S/S N6 GRN

Imperial SF - UCF type Green Thermoplastic Square Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£223.35 (£268.02 inc VAT)
5 - 9£212.19 (£254.63 inc VAT)
10 +£201.02 (£241.22 inc VAT)
Bulk Order PricesENQUIRE

FPL 210 32 S/S N6 GRN, Green Thermoplastic Square Flange Housing Unit with a 2 inch bore - Select Range Schematic

Specifications for FPL 210 32 S/S N6 GRN, Green Thermoplastic Square Flange Housing Unit with a 2 inch bore - Select Range
Reference	FPL 210 32 S/S N6 GRN
Brand	Select
Inside Diameter	2"
Bolt	M16
Max Torque	50Nm
Weight (KG)	1.42

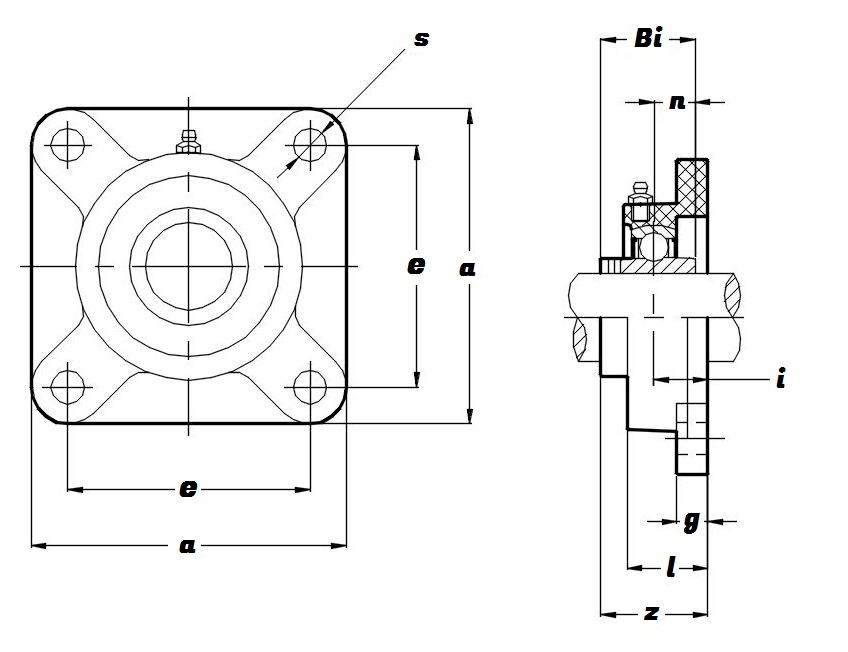

Schematic for FPL 210 32 S/S N6 GRN, Green Thermoplastic Square Flange Housing Unit with a 2 inch bore - Select Range
a	143mm
Bi	51.6mm
e	111mm
g	21mm
i	25mm
KG	1.42
l	43mm
n	19mm
s	17mm
z	57.6mm
