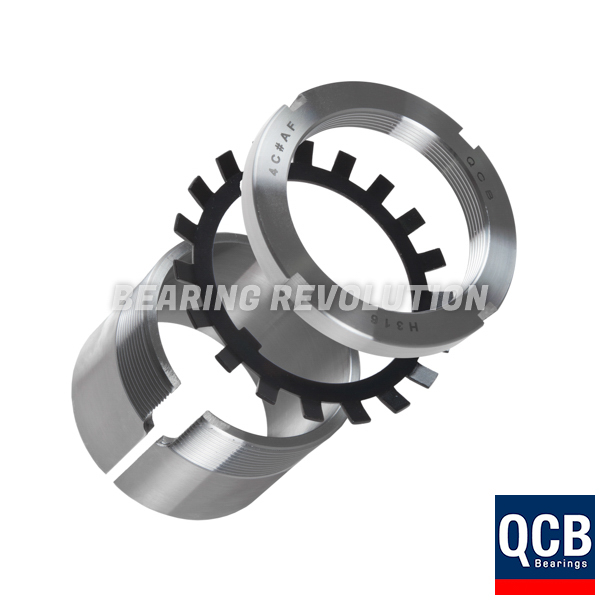

HE 2324 4.1/4, ADAPTER SLEEVE - SELECT RANGE
Adapter Sleeve to fit into a tapered 4.1/4" bore bringing it down to suit a 120mm shaft. Comes complete with KML 24 lock nut and MBL 24 lock washer. Appropriate Hydraulic Nut is HMV 24 E but must be ordered separately.
Also known as HE 2324
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£247.52 (£297.02 inc VAT)
- 5 - 9£235.15 (£282.18 inc VAT)
- 10 +£222.78 (£267.34 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for HE 2324 4.1/4, Adapter Sleeve - Select Range | |
| Reference | HE 2324 4.1/4 |
| Brand | Select |
| Inside Diameter | 4.1/4" |
| Outside Diameter | 120mm |
| Width | 112mm |
| Weight (KG) | 3.2 |
Schematic for HE 2324 4.1/4, Adapter Sleeve - Select Range | |
| B | 112mm |
| D | 120mm |
| d1 | 4.1/4" |
| KG | 3.2 |
