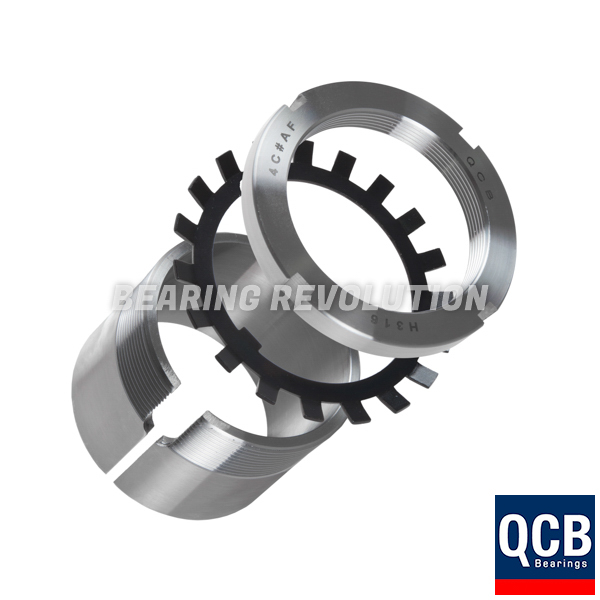

HE 322 3.3/4, ADAPTER SLEEVE - SELECT RANGE
Adapter Sleeve to fit into a tapered 3.3/4" bore bringing it down to suit a 110mm shaft. Comes complete with KM 22 lock nut and MB 22 lock washer. Appropriate Hydraulic Nut is HMV 22 E but must be ordered separately.
Also known as HE 322
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£172.27 (£206.72 inc VAT)
- 5 - 9£163.66 (£196.39 inc VAT)
- 10 +£155.05 (£186.06 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for HE 322 3.3/4, Adapter Sleeve - Select Range | |
| Reference | HE 322 3.3/4 |
| Brand | Select |
| Inside Diameter | 3.3/4" |
| Outside Diameter | 110mm |
| Width | 77mm |
| Weight (KG) | 2.18 |
Schematic for HE 322 3.3/4, Adapter Sleeve - Select Range | |
| B | 77mm |
| D | 110mm |
| d1 | 3.3/4" |
| KG | 2.18 |
