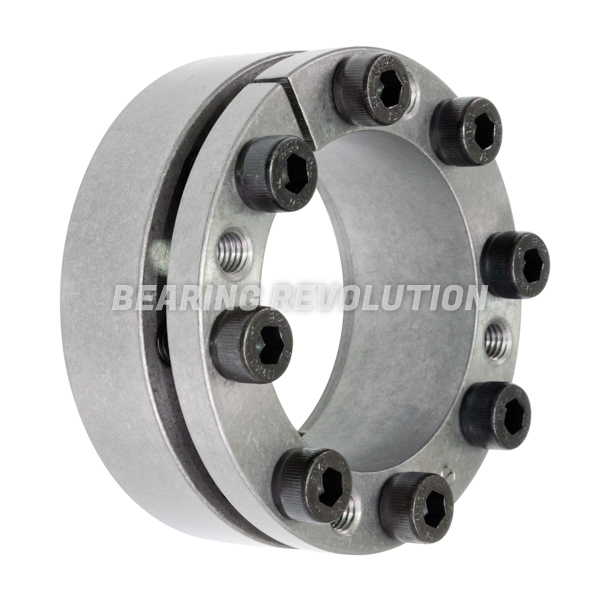

KLAA 032
LOCKING DEVICE TO SUIT A 32MM SHAFT
Self-centering locking device for rapid mainternance and assembly, medium to high torque, self locking.
- UnitsPer unit
- 1+£19.60 (£23.52 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for KLAA 032 | |
| Reference | KLAA 032 |
| Brand | BR |
| Inside Diameter | 32mm |
| Bolt | M6x20 |
| Number of Screws | 8 |
| Weight (KG) | 0.45 |

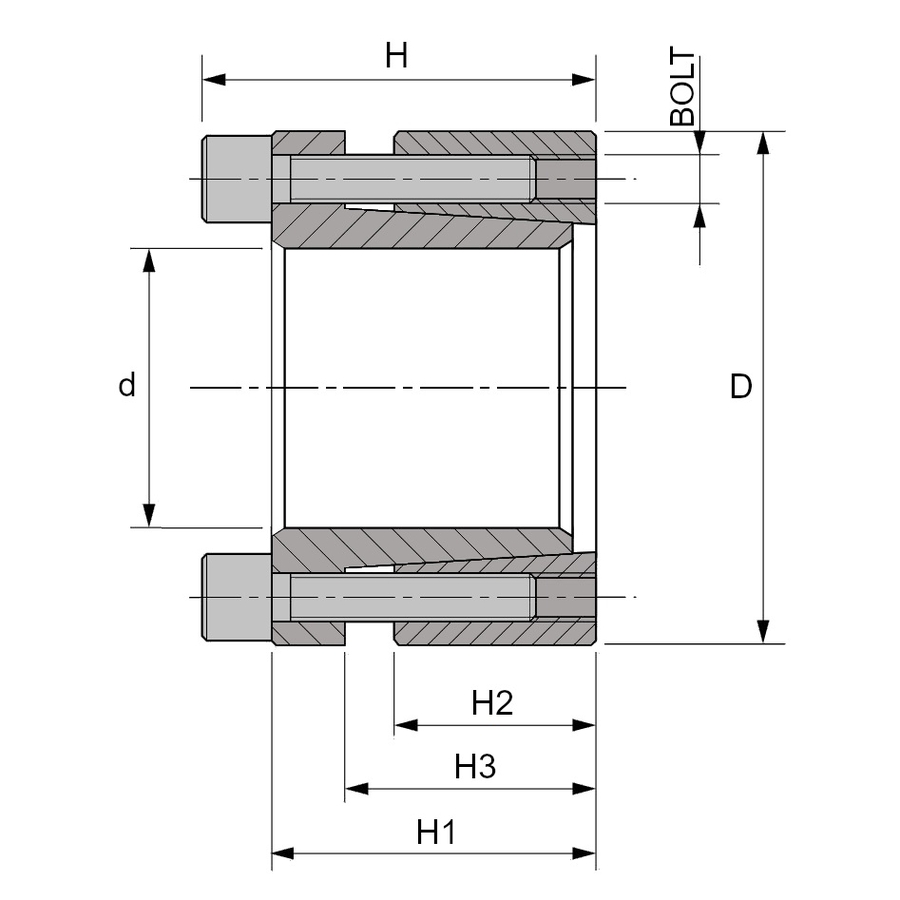

Schematic for KLAA 032 | |
| d | 32mm |
| D | 60mm |
| H | 34mm |
| H1 | 28mm |
| H2 | 17mm |
| H3 | 22mm |
