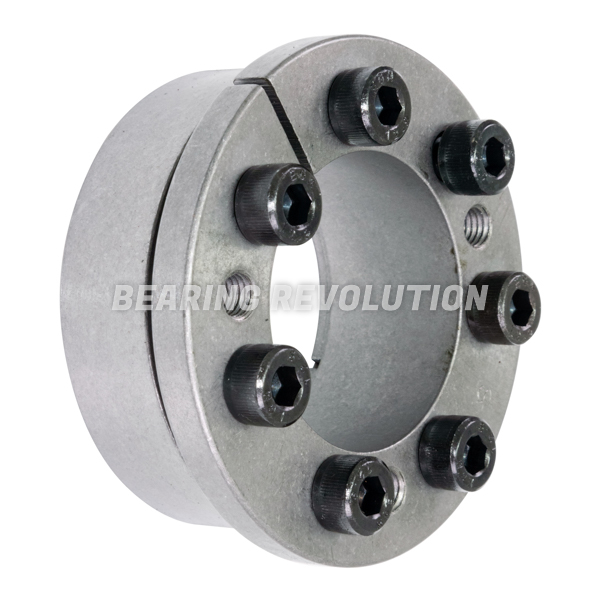

KLAB 040
LOCKING DEVICE TO SUIT A 40MM SHAFT
Self-centering locking device for rapid mainternance and assembly, medium to high torque, self locking.
- UnitsPer unit
- 1+£26.60 (£31.92 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for KLAB 040 | |
| Reference | KLAB 040 |
| Brand | BR |
| Inside Diameter | 40mm |
| Bolt | M6x20 |
| Number of Screws | 8 |
| Weight (KG) | 0.4 |

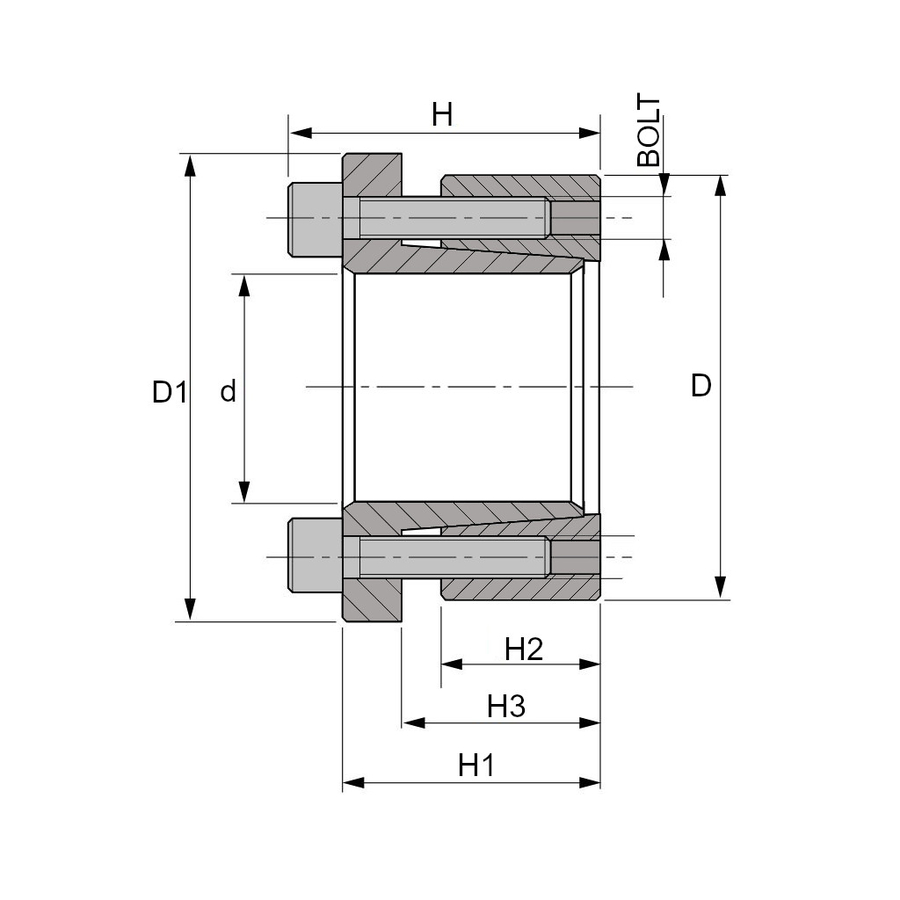

Schematic for KLAB 040 | |
| d | 40mm |
| D | 65mm |
| d1 | 74mm |
| H | 34mm |
| H1 | 28mm |
| H2 | 17mm |
| H3 | 22mm |
