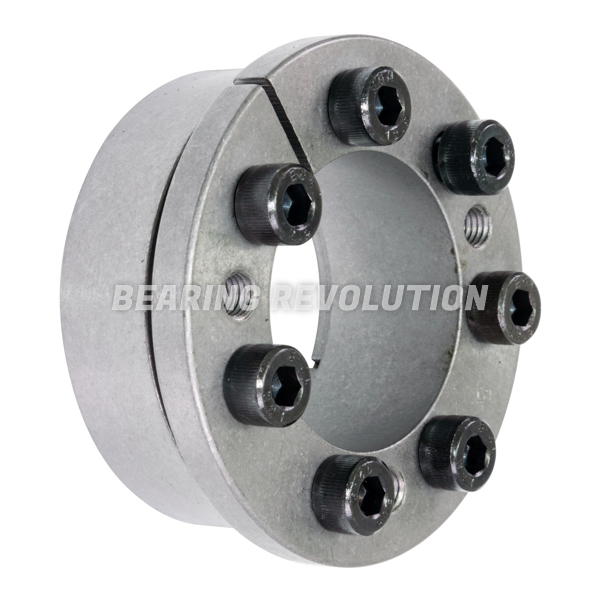

KLAB 100
LOCKING DEVICE TO SUIT A 100MM SHAFT
Self-centering locking device for rapid mainternance and assembly, medium to high torque, self locking.
- UnitsPer unit
- 1+£63.00 (£75.60 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for KLAB 100 | |
| Reference | KLAB 100 |
| Brand | BR |
| Inside Diameter | 100mm |
| Bolt | M12x35 |
| Number of Screws | 8 |
| Weight (KG) | 2.85 |

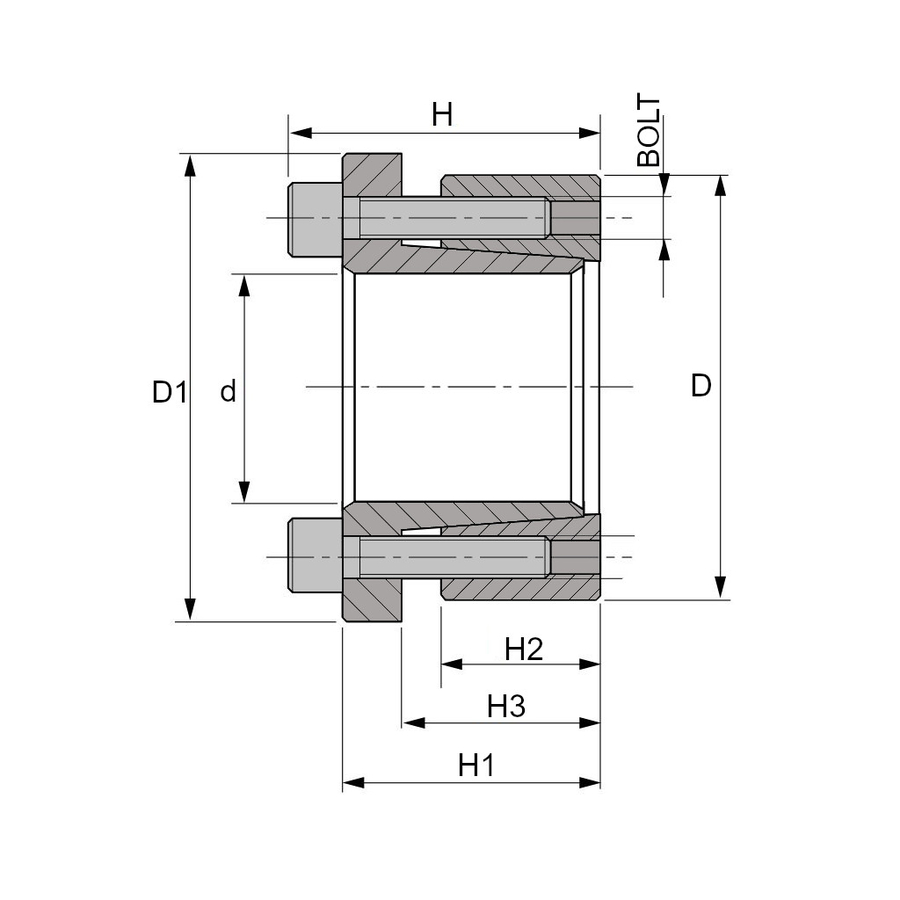

Schematic for KLAB 100 | |
| d | 100mm |
| D | 145mm |
| d1 | 154mm |
| H | 56mm |
| H1 | 44mm |
| H2 | 26mm |
| H3 | 32mm |
