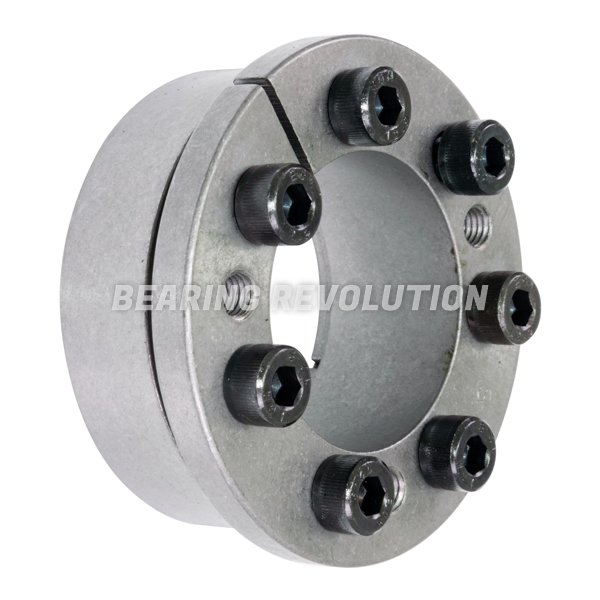

KLAB 120
LOCKING DEVICE TO SUIT A 120MM SHAFT
Self-centering locking device for rapid mainternance and assembly, medium to high torque, self locking.
- UnitsPer unit
- 1+£68.00 (£81.60 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for KLAB 120 | |
Reference | KLAB 120 |
Brand | BR |
Inside Diameter | 120mm |
Bolt | M12x35 |
Number of Screws | 9 |
Weight (KG) | 3.500 |

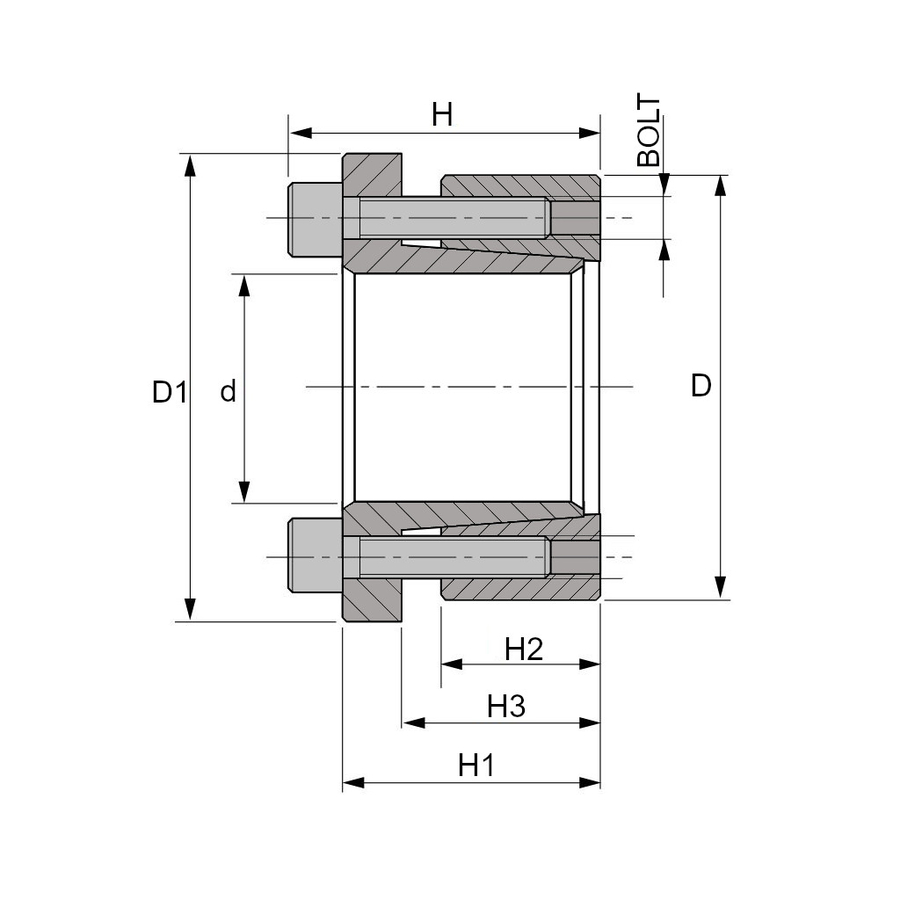

Schematic for KLAB 120 | |
d | 120mm |
D | 165mm |
d1 | 174mm |
H | 56mm |
H1 | 44mm |
H2 | 26mm |
H3 | 32mm |
