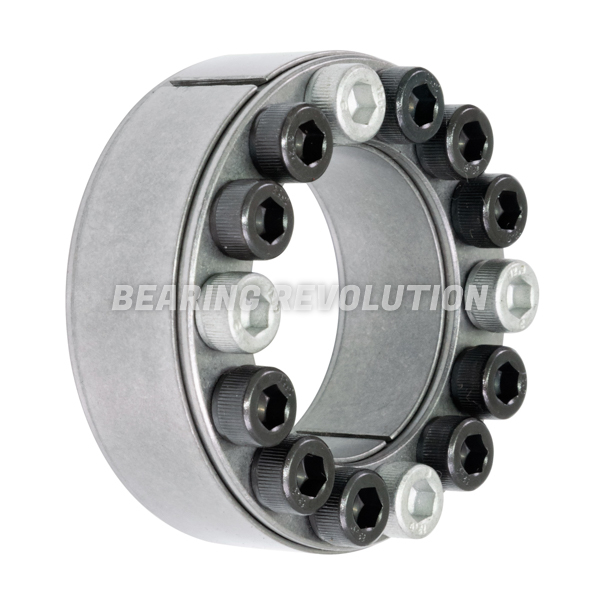

KLGG 035
LOCKING DEVICE TO SUIT A 35MM SHAFT
Not self-centering locking device for rapid mainternance and assembly, medium to high torque, non self locking.
- UnitsPer unit
- 1+£44.80 (£53.76 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for KLGG 035 | |
| Reference | KLGG 035 |
| Brand | BR |
| Inside Diameter | 35mm |
| Bolt | M6x18 |
| Number of Screws | 12 |
| Weight (KG) | 0.3 |

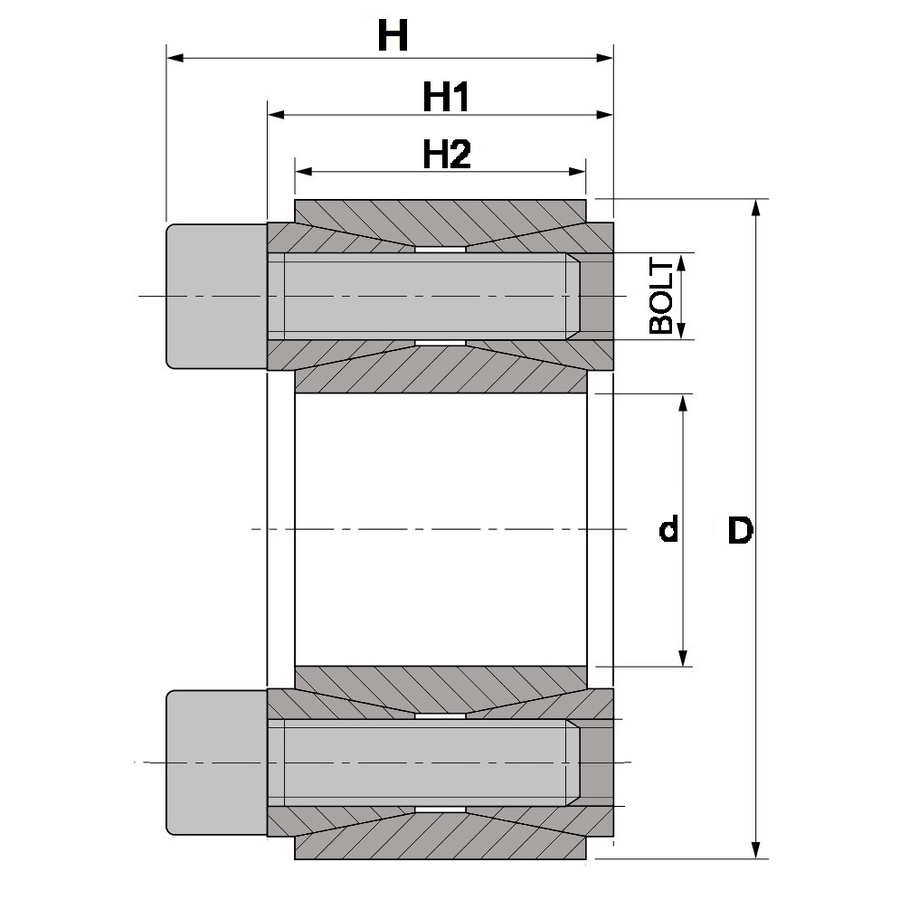

Schematic for KLGG 035 | |
| d | 35mm |
| D | 60mm |
| H | 26mm |
| H1 | 20mm |
| H2 | 17mm |
